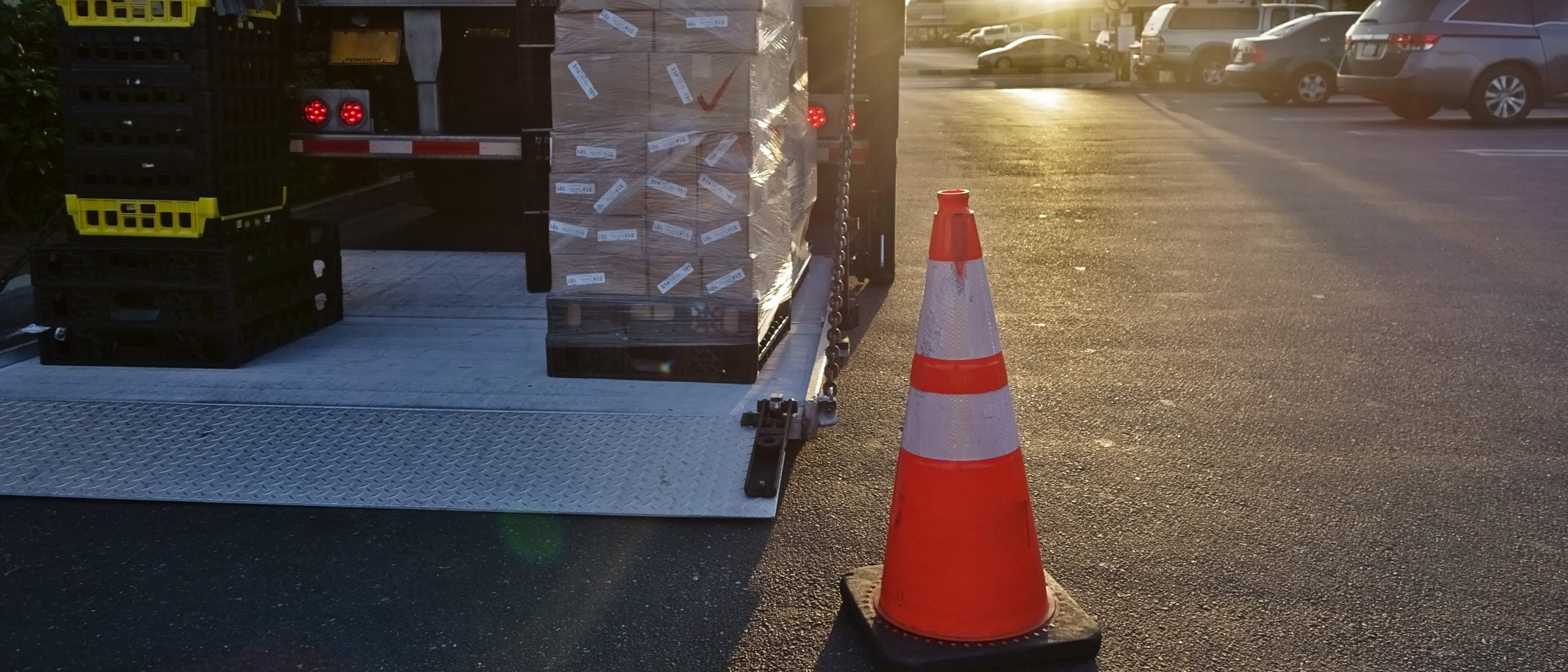

A liftgate platform lowered to the pavement behind a delivery trailer, loaded with crates and a wrapped pallet, in low evening sun

Palfinger, Leyman, Waltco and Maxon

Liftgates

Sales, installation and service for four brands, from cargo-van gates to heavy-duty column lifts.

Four brands.

Gates for cargo vans, box trucks and trailers, rated from 1,000 to 10,000 lbs. We also service and supply parts for every other make.

PalfingerVans to trailersSeven styles, from cargo-van gates to column lifts, for vans, box trucks and trailers.1,100–6,600 lbsPalfinger liftgates
LeymanTrucks and trailersSide, tuckunder and column gates for trucks and trailers. TKSE installs, services and does warranty work on them.1,000–10,000 lbsLeyman liftgates
WaltcoLight to heavy dutyFlipaway, rail, cantilever and slide-away gates for light, medium and heavy duty vehicles.1,000–6,600 lbsWaltco liftgates
MaxonBy weight classTuk-A-Way, Slidelift, Railift and Columnlift gates, matched by Maxon to the truck's weight class.1,300–6,600 lbsMaxon liftgates

Which liftgate?

Start with the vehicle. Here's what each maker offers for it.

From each maker's literature.

Before you call.

Maxon's selection guide, in four steps. Have the answers ready and the shop can point you to a gate.

The vehicleStart with the vehicle and its gross vehicle weight: light duty (14,000 lbs or less), medium duty (14,001 to 26,000 lbs) or heavy duty (26,001 lbs or more).
The heaviest loadAdd the cargo with its packaging, the pallet, the pallet jack or other handling device, and the driver or drivers. Pick a gate rated for the heaviest total.
The rideStandard ride is for loads that sit stable on the platform. Level ramping makes pallet jacks and wheeled carts easy to roll on and off. Level ride is for high or tall carts and loads.
The bed heightMeasure it unladen for the maximum and loaded for the minimum. Palfinger's bed height ranges work the same way: min = loaded, max = unloaded.

Compare by type

Each maker's current models and capacities, sorted by how the platform stows.

Liftgate models from Palfinger, Leyman, Waltco, Maxon by platform type, with each maker's capacities
Type	Palfinger	Leyman	Waltco	Maxon
Cargo van	The MiniFix1,100 or 1,320 lbs	None listed	None listed	GPC X1-LDF1,350 lbs
Folding and tuck-under	PLR2,000–3,300 lbs ILP2,500 or 3,300 lbs ILT3,500 or 4,000 lbs PTF (AutoFold)5,000 or 5,500 lbs	HERO LHLP2,500–5,500 lbs LIBERTY SLP3,500 lbs	EM2,500 or 3,300 lbs HLF2,500–5,000 lbs	TE-202,000 lbs TE-25 / TE-302,500–3,000 lbs TE-33/WR3,300 lbs MXT-25 / MXT-332,500–3,300 lbs GPT and GPTWR2,500–5,000 lbs GPTLR2,500–5,500 lbs
Rail and column	PTV3,500–6,600 lbs PTV-BG3,500 or 4,400 lbs ILMplus1,600–3,000 lbs	FREEDOM FXD4,500–6,800 lbs	DD1,600 or 2,000 lbs MDL1,250–3,000 lbs MDL/HP1,600–3,000 lbs MDV3,000 or 4,000 lbs WDV3,500–6,600 lbs	DMD / DMD-TT1,800–3,300 lbs RC2,000–6,000 lbs RCT3,000–4,000 lbs BMR3,500–6,600 lbs
Cantilever	ILK1,800–6,600 lbs ILQ2,200 lbs	None listed	HDC 33/443,300 or 4,400 lbs	GPC 17/22 X11,700–2,200 lbs GPC 33/44 X43,300–4,400 lbs
SliderStows under the vehicle.	ILU4,000 or 5,000 lbs ILUK3,300–6,000 lbs ILFP3,000 or 4,000 lbs	PATRIOT LPR4,500 lbs	ZS 33/44 MK23,300 or 4,400 lbs	GPS5,500 lbs GPSLR3,500–5,500 lbs GPST4,400 lbs GPSLRT3,500–5,500 lbs
Side door	ILSL 303,000 lbs	PREMIER LPS4,500 lbs LEGEND TLS3,500 or 4,500 lbs TRIUMPH LTS2,000 lbs SUPERIOR TSG3,000 lbs	None listed	RA3,500–4,500 lbs
Gas bottle	None listed	None listed	MDLBG1,600 or 2,000 lbs MDVBG3,500 or 4,500 lbs	RC-CS3,000–4,000 lbs BMR-CS3,500–4,400 lbs
Specialty	None listed	GUARDIAN PLG (patient lift)1,000 lbs VALOR Ley-Vador (internal elevator)6,000 or 10,000 lbs	FM (full closure)1,000 or 1,600 lbs	MLA1,600–2,000 lbs

Keep it running.

Service, parts and power for every make of liftgate.

Questions

Which liftgate brands does TKSE sell?

Palfinger, Leyman, Waltco and Maxon. Each brand's page lists its current models: Palfinger, Leyman, Waltco and Maxon.

Do you install and service liftgates?

Yes. Liftgate installation and service are on TKSE's service menu at all seven shops, and TKSE services every make, including gates it doesn't sell. For Leyman, TKSE also does warranty work, and its parts department carries Leyman items and accessories.

How much lifting capacity do I need?

Add up the cargo with its packaging, the pallet, the pallet jack or other handling device, and the driver or drivers. Choose a gate rated for the heaviest total you'll lift.

What are the main types of liftgate?

A cantilever is a stable, level platform that tilts for easy loading and unloading. A column lift is ideal for high-volume loading and heavy-duty applications. A slider mounts beneath the truck bed and slides out when needed. Folding gates fold away for compact storage: on a Maxon Tuk-A-Way, the platform can fold and stow under the truck body in the dock-ready position.

Can I get liftgate parts?

Yes, for every make, including gates TKSE doesn't sell. Its parts department also carries items and accessories for Leyman gates. Call your shop's counter with the make and model, or send a parts request.

Need a liftgate? Call TKSE.

Tell the shop the vehicle, the heaviest load and the bed height.
