Thermo King diesel APU
3rd Generation TriPac
The 3rd generation TriPac diesel APU provides the same comfort and performance customers expect from Thermo King but now includes TracKing® Telematics and new emission reduction technology.
Why the 3rd Gen TriPac
About 75% less fuel
Uses approximately 75% less fuel per hour than idling the tractor engine, saving about 2,500 gallons a year (individual results may vary).
Year-round climate control
It cools at 13,000 BTU/hr (80°F box, 50% humidity, 95°F ambient) and heats at 7,500 BTU/hr, or 13,600 with the optional high-output heater.
TracKing telematics
TracKing tracks APU run hours and cabin temperatures, and automates fuel tax reporting.
Fewer tractor engine hours
Offloading engine hours to the TriPac saves engine wear, reduces maintenance frequency and helps a fleet retain more of its resale value.
A 50-state compliant model
The aftertreatment device model is a 50-state compliant solution for CARB and EPA Tier 4 on new OEM or aftermarket installs.
Four years on major components
The standard warranty is four years on major components and two years bumper to bumper, with full details in the warranty documentation.
Overview
- 13,000BTU/hrAir conditioning capacity
- 75%less fuelApproximately, per hour, than idling the tractor engine
- 24monthsOf TracKing telematics, standard and complimentary
- 4yearsMajor-component warranty, plus two years bumper-to-bumper

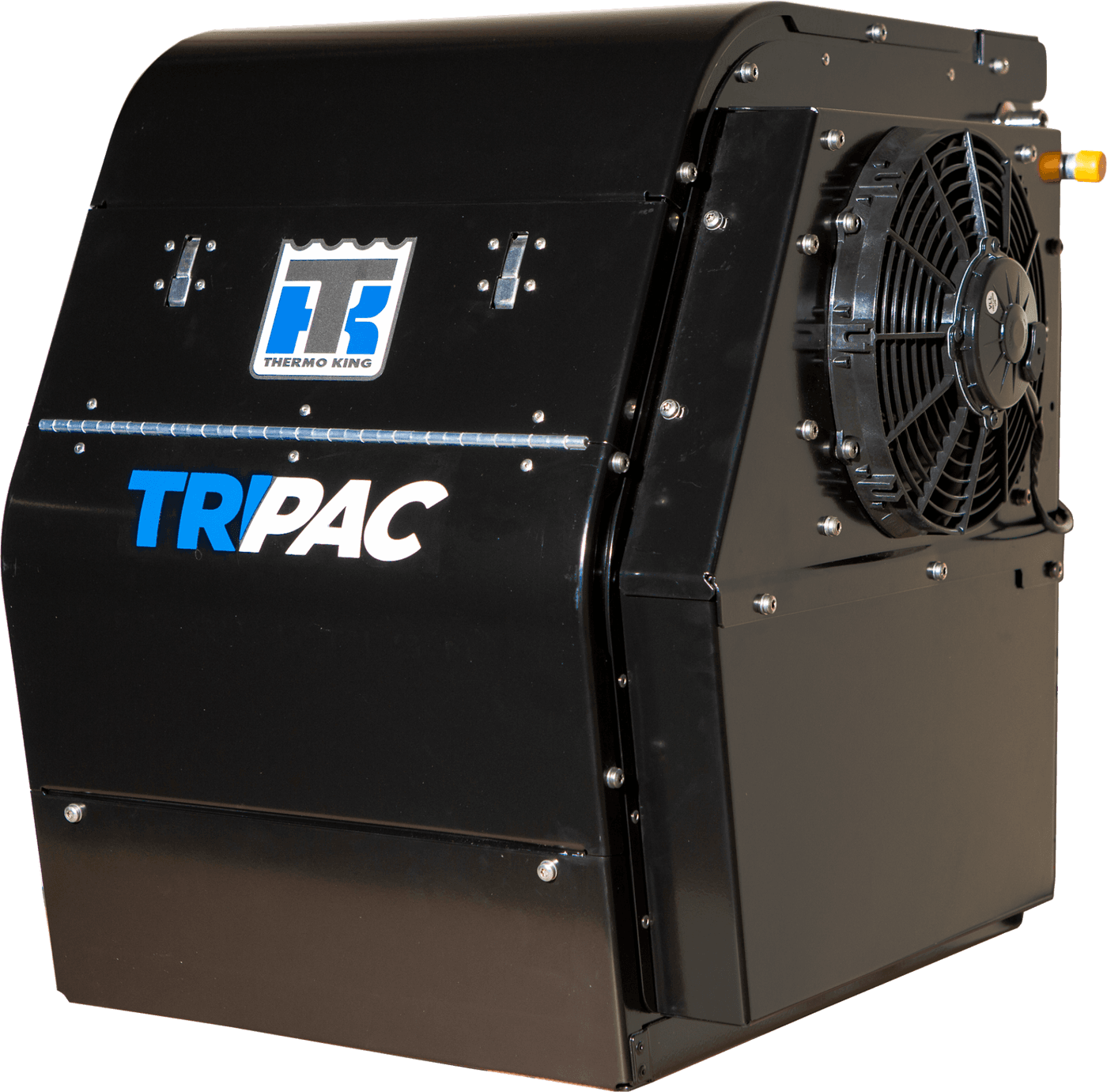

Thermo King's 3rd Generation TriPac is a diesel APU built on a Tier 4 two-cylinder engine and a Thermo King QP15HD compressor. It comes in two models: a 49‑state EPA Tier 4 standard model for aftermarket installs, and an aftertreatment device (ATD) model that is 50‑state compliant for CARB and EPA Tier 4, for new OEM or aftermarket installs.

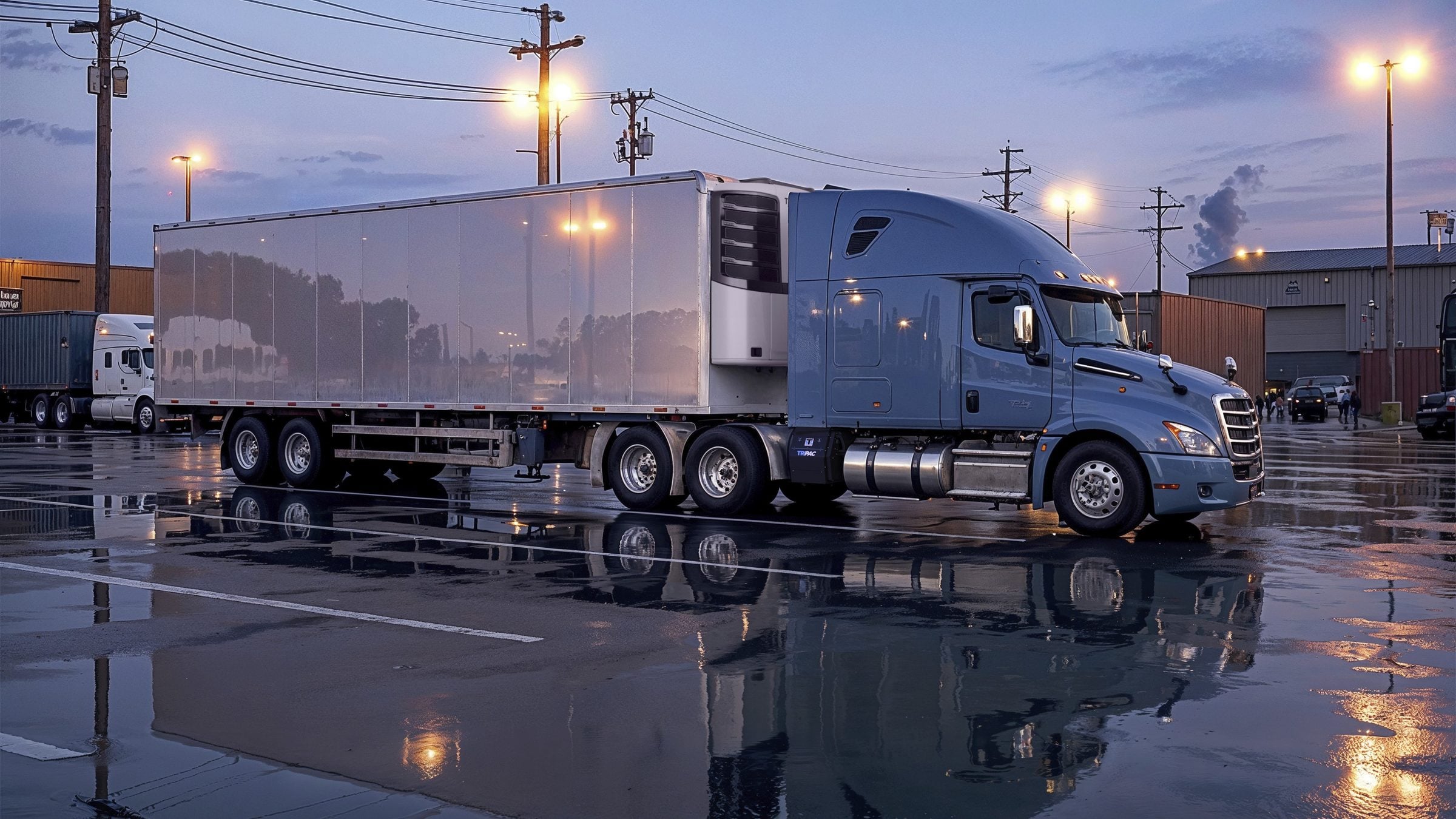

Rest without idling.
What Thermo King built into the 3rd Generation TriPac, and what it means at the truck stop.
Less fuel at rest.
A TriPac APU consumes approximately 75% less fuel per hour than idling the tractor engine. That's about 2,500 gallons a year, or 10,000 gallons over the typical length of tractor ownership.
- Eliminates unnecessary engine idling, saving engine wear and reducing maintenance frequency
- Offloading engine hours to the TriPac helps a fleet retain more of its resale value
Based on actual customer experiences. Individual results may vary.
Telematics, standard.
TracKing telematics comes standard on the 3rd Generation TriPac, complimentary for the first 24 months. It shows APU run hours and cabin temperatures, and it automates fuel tax reporting.
- Real-time alarm notifications and maintenance reminders
- Over-the-air software updates download new capabilities and bug fixes
- Runtime reports by state, weekly, monthly or annually, for fuel tax reporting
Built for all 50 states.
Choose the model with the passive aftertreatment device (ATD) for a 50-state solution, compliant for CARB and EPA Tier 4 on new OEM or aftermarket installs. Thermo King eliminated the dash switch, and its new metal mesh technology regenerates in as little as eight minutes.
- Standard model: a 49-state EPA Tier 4 compliant solution for aftermarket installs
- Aftertreatment device model: a 50-state solution, compliant with CARB and EPA Tier 4, for new OEM or aftermarket installs

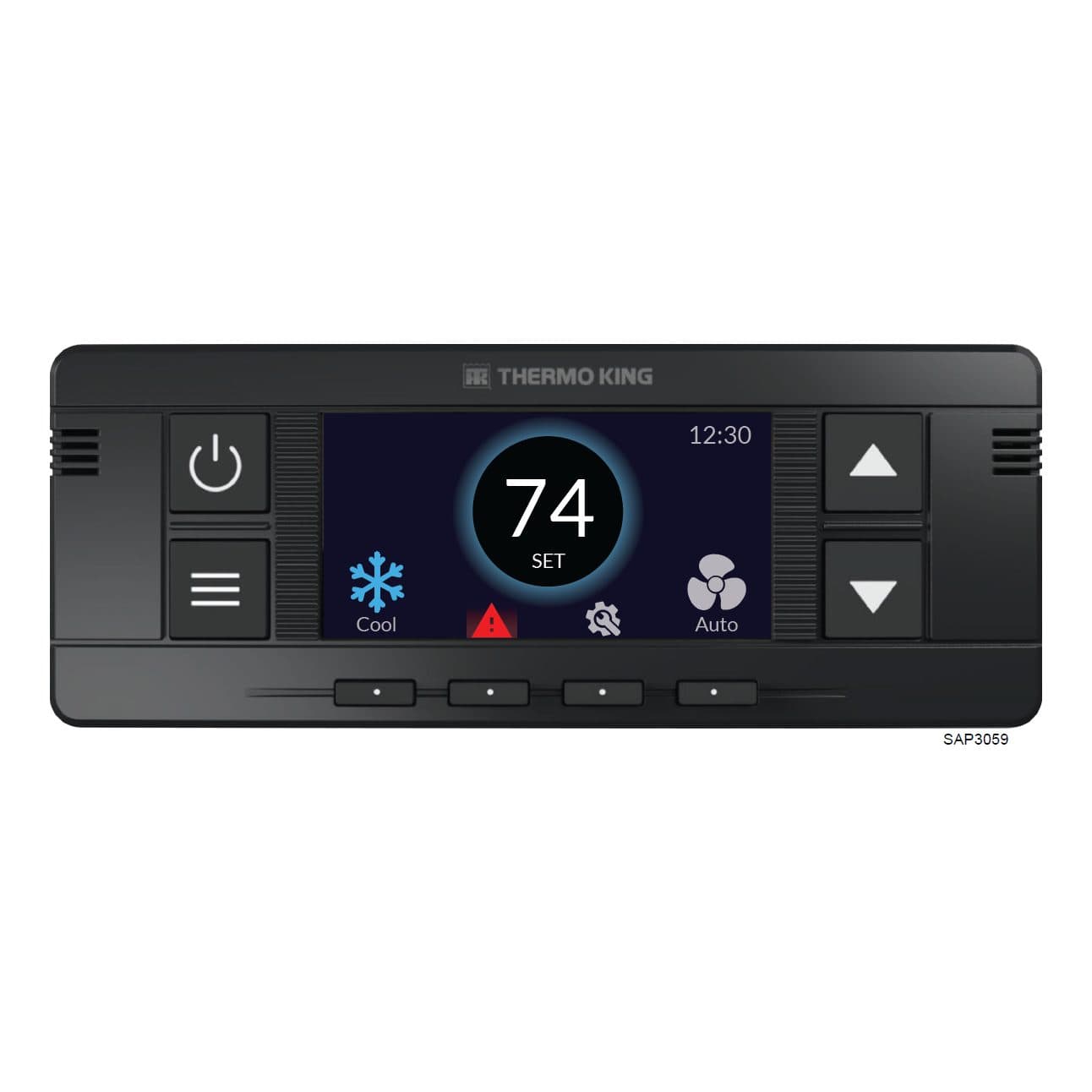

A controller drivers can read.
The controller has an enhanced color digital display with tactile push buttons and plain language readouts. Large cabin temperature readings, function icons and toggling menus give drivers more control over their comfort and the APU.
Built to last longer.
Thermo King doubled the standard warranty for major components to four years and extended bumper-to-bumper coverage to two years. It also streamlined wire harnesses, connectors, fusing and routing for serviceability and reliability, and reduced the estimated total cost of ownership by 25% compared with the prior model.
See Thermo King's warranty documentation for full details.
Built for the road.
- APU Air TowerImproves air circulation above the bunk and reduces APU run time by up to 22%.
- 2,000-watt inverterPure sine wave power, the same type you get at home, for a phone, a microwave or a sleep apnea machine. 4,000-watt peak surge, UL458 certified.
- Backflow Preventer KitAutomatically closes the OEM HVAC air inlet while the APU runs. Without it, up to 10% of APU airflow can backflow through the OEM system.
- ThermoLite solar40 W white, 110 W white or 110 W black kits. ThermoLite panels can reduce TriPac engine run time by up to 30% compared with the prior model.
- High-output heater13,600 BTU/hr in place of the standard 7,500 BTU/hr heater. An Arctic Package helps cold weather starting.
- Telematics serviceTelematics hardware with three or four years of service is optional.
Unit specs
Specs for the 3rd Generation TriPac, with their test conditions.
Engine
| Engine | Thermo King Tier IV final-compliant 2-cylinder diesel engine |
|---|
Compressor
| Compressor | Thermo King QP15HD Air Conditioning Compressor |
|---|
Alternator
| Voltage | 14.5 V |
|---|---|
| Output | 120 amp |
Refrigerant
| Type | HFC R-134a |
|---|
Air conditioning capacity
| Capacity | 13,000 BTU/hr (3,810 Watts) |
|---|
ARI STD 310/380: Standard for Packaged Terminal Air Conditioners and Heat Pumps for the rating conditions of 80°F Box, 50% humidity, and 95°F ambient.
Heating capacity
| Standard heater | 7,500 BTU/hr (2,200 Watts) |
|---|---|
| High-output heater | 13,600 BTU/hr (3,986 Watts) (optional) |
Evaporator airflow
| Airflow | 250 ft³/min |
|---|
System weight (approx)
| Standard Model | 363 lbs (165 kg) |
|---|---|
| Aftertreatment Device Model | 402 lbs (182 kg) |
| HVAC System | 70 lbs (32 kg) |
Controls
| Controls | Color-enhanced digital display with tactile pushbuttons and plain language readouts |
|---|
Models and options
- ModelsTriPac Standard Model · TriPac with Aftertreatment Device Model
- Cold weather startingArctic Package
- SolarSolar Kit, APU 40W White · Solar Kit, APU 110W White · Solar Kit, APU 110W Black
- Air flow distributionTower Kit
- Truck integrationTruck Integration Harness (Standard Model) · Truck Integration Harness w/ Switch (Standard Model) · Truck Integration Harness w/ Switch (w/ATD)
- Hour metersDual Hour Meters (Engine Hours & Heater Hours) · Single Hour Meter (Engine Hours)
- Cab air damperBackflow Preventer Kit
- InverterInverter - 2000 Watt Pure Sine Wave
- HeaterHeater AX2 (D2) Delete · High Output Heater Upgrade AX2 (D4)
- ExhaustStainless Steel Exhaust Extension (Standard Model) · Stainless Steel Exhaust Extension for ATD (ATD Model)
- AppearanceStainless Steel Condenser · Appearance Package (Diamond Plate Top Cover)
- MountingDirect Mount Kit 1.5” Spacer
- EngineGates® PowerGrip® Hose Clamp · Closed Loop Cooling
- TelematicsHardware + 4YRS service · Hardware + 3YRS service
- Delete optionsFuel Pickup Tube Delete Option · Precooler Fan Cover Delete Option
Some options apply only to the standard model or only to the aftertreatment device model, as marked.
Resources
Spec sheets, brochures and manuals for the 3rd Generation TriPac. Each opens on thermoking.com.
Every spec sheet and manual- Spec sheet3rd Generation TriPac specification sheetPDF · 268 KB · TK 57223-19-PLOpen 3rd Generation TriPac specification sheet (PDF, opens in a new tab)
- Brochure3rd Generation TriPac brochurePDF · 2.0 MB · TK 57222-19-PLOpen 3rd Generation TriPac brochure (PDF, opens in a new tab)
- Operator's manualTriPac 3 operator's manualPDF · 7.9 MB · TK 57075-19-OP-ENOpen TriPac 3 operator's manual (PDF, opens in a new tab)
- Driver's guideTriPac 3 driver's guide to simple operationPDF · 898 KBOpen TriPac 3 driver's guide to simple operation (PDF, opens in a new tab)
- Driver's cardTriPac 3 driver's operation cardPDF · 550 KB · TK 57049-19-PCOpen TriPac 3 driver's operation card (PDF, opens in a new tab)
- Installation manualTriPac 3 installation manualPDF · 18.7 MB · TK 57113-19-IMOpen TriPac 3 installation manual (PDF, opens in a new tab)
- Installation instructionsConnectedSuite telematics installation instructions (TriPac)PDF · 623 KB · TK 57265-19-ISOpen ConnectedSuite telematics installation instructions (TriPac) (PDF, opens in a new tab)
- White paperHigh-efficiency auxiliary power unitsPDF · 845 KB · TK 57632-19-PLOpen High-efficiency auxiliary power units (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the 3rd Generation TriPac.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the 3rd Generation TriPac. Anything else, call your shop.
Which TriPac model do I need for California?
The aftertreatment device (ATD) model. It is a 50-state compliant solution for CARB and EPA Tier 4, for new OEM or aftermarket installs. The standard model is a 49-state EPA Tier 4 solution for aftermarket installs.
How much fuel does a TriPac save?
Approximately 75% less fuel per hour than idling the tractor engine, about 2,500 gallons a year. That's based on actual customer experiences, and individual results may vary.
Is telematics included?
Yes. TracKing comes standard, complimentary for the first 24 months. After two years, fleets can decide whether to continue with a paid TracKing subscription.
How much heat does it put out?
7,500 BTU/hr from the standard heater, or 13,600 BTU/hr with the optional high-output heater. An Arctic Package is available for cold weather starting.
Can it run my appliances?
The TriPac has plenty of capacity to power appliances and charge devices. It has a 120-amp alternator, and a 2,000-watt pure sine wave inverter is an option.
How often does it need service?
Change the oil every 2,000 hours with a Thermo King brand oil filter and CK-4 or better oil, or every 500 hours with any other brand of filter and CI-4 or better oil. Engine valve adjustment is due at 1,500 hours. An authorized Thermo King dealer should do the work.
What's the warranty?
Thermo King doubled the standard major-component warranty to four years and bumper-to-bumper coverage to two years; its warranty documentation sets the terms. Thermo King's Extended Warranty also covers the 3rd Generation TriPac Diesel APU, with full-unit and major-component options.
Who installs and services it?
TKSE's factory-trained technicians. APU installation and preventive maintenance are on TKSE's service menu. See APU service.

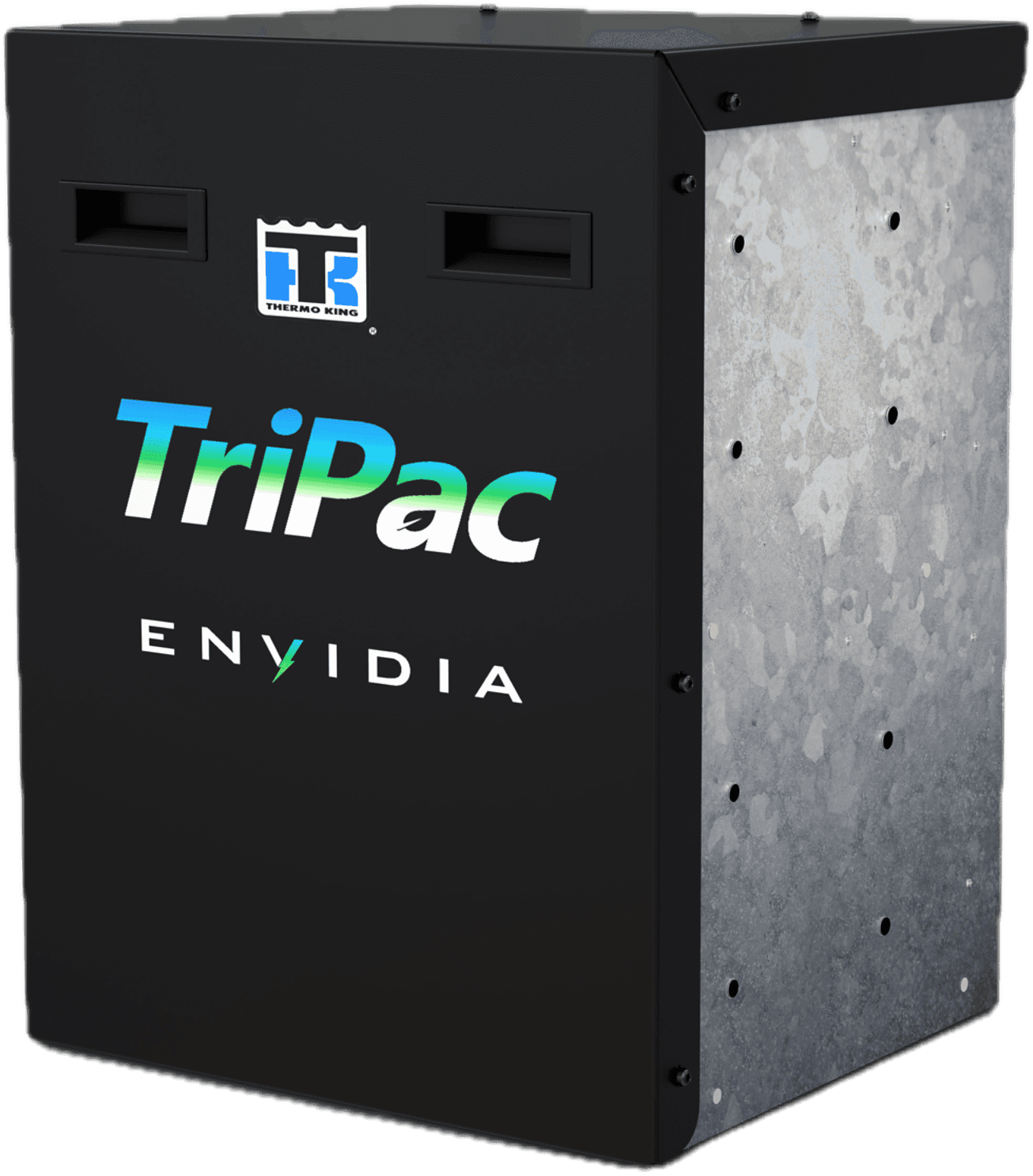

Other Thermo King APUs
