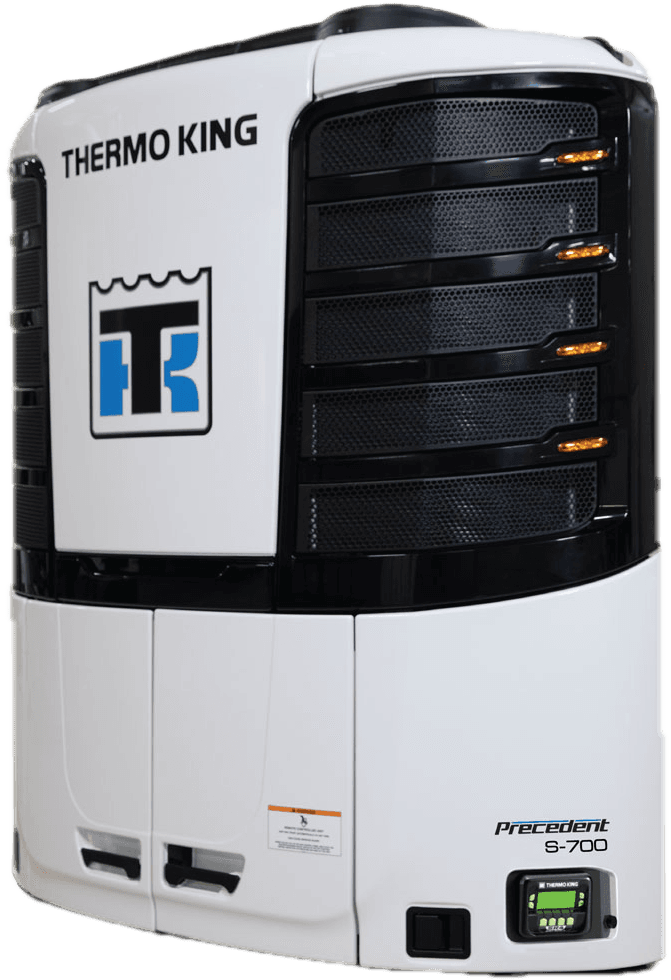

Thermo King Precedent S-700
For single-temperature trailers requiring deep-frozen capability, choose the Precedent S-700 reefer. The S-700 is CARB Evergreen certified and customizable for your business.
Why the S-700
Deep-frozen capability
Handles deep-frozen loads with 23,000 BTU/hr at -20°F on engine power with ETV (100°F ambient, high speed engine operation).
Strong fuel savings, no DPF
A CARB ULETRU compliant S-Series engine lets you enjoy strong fuel savings for the long haul without the need for a DPF.
CARB Evergreen certified
The S-700 holds CARB Evergreen Certification (since 2013) and complies with the highest possible EPA standards (>25HP Tier IV).
TracKing telematics built in
Factory equipped with complimentary TracKing telematics, which helps monitor temperature and detects fuel loss.
Over 500 cargo profiles
OptiSet Plus ensures temperatures are optimized and personalized with pre-set profiles for your cargo.
Lower refrigerant carbon footprint
R452A provides a lower Global Warming Potential (GWP) and reduces the carbon footprint of refrigerants used by fleets by nearly 50%.
Overview
- 68,000BTU/hrCooling at 35°F, engine power with ETV
- 23,000BTU/hrCooling at -20°F, engine power with ETV
- 35.0HPTK488CRH engine, rated at 2,600 RPM
- 24monthsOf complimentary TracKing telematics, factory equipped
The S-700 is Thermo King’s single-temp Precedent for deep-frozen loads: a more powerful system on the S-Series platform, with a TK488CRH engine rated 35.0 HP. It holds CARB Evergreen certification, needs no DPF and uses R452A refrigerant.
More capacity, still compliant.
What Thermo King added to the S-700, and what it means for deep-frozen loads.
Built for -20°F.
The S-700 builds on the strength of the S-Series platform with a more powerful system, so you receive superior deep-frozen capacity. It is rated at 23,000 BTU/hr at -20°F on engine power, and the same on electric power.
- 37,000 BTU/hr at 0°F on engine power
- 72,000 BTU/hr of heating at 35/0°F ambient
Cooling capacity at 100°F ambient and high speed engine operation.
More power, no DPF.
Thermo King pairs the S-700’s deep-frozen capacity with its CARB ULETRU compliant S-Series engine, a TK488CRH rated 35.0 HP at 2,600 RPM, for strong fuel savings for the long haul without the need for a DPF.
- CARB Evergreen Certification since 2013
- Complies with highest possible EPA standards (>25HP Tier IV)
- Common rail fuel injection with real-time monitoring
Set by the cargo.
The Smart Reefer SR-4 controller runs OptiSet Plus cargo profiles for maintaining product integrity, with ServiceWatch maintenance monitoring and USB service diagnostics.
- Over 500 OptiSet Plus cargo profiles
- Two return air sensors, with sensor accuracy within ±0.47°F
- Running and pretrip diagnostics
- Proprietary eco-pulldown technology
Connected from the factory.
Every S-700 comes factory equipped with 24 months of complimentary TracKing telematics. It helps monitor temperature, offers rapid alarm detection and security alerts when the doors are opened, and detects fuel loss.
- Fleet overview, fleet performance and readiness score dashboards
- Fuel and maintenance reporting
- Full remote control of your refrigerated fleet
Built for the road.
Hardware on the S-700.
- Condenser grillesImproved protection from road debris that can impact the condenser coil, and a stronger, more integrated look
- Composite doorsLong-life door panels with auto-latch and auto secondary latch on the front doors
- Fuel systemCommon rail fuel injection with real-time monitoring, and a 2-stage fuel filtration system
- Fuel tank50-gallon aluminum undermount tank with a visual fuel level gauge
- Alternator37 amp extended life alternator; a 65 amp alternator and 30 amp battery charger are optional
- Coils and evaporatorMicrochannel condenser coils and a 2-speed evaporator
Compare the S-700.
Side by side with another single-temperature Precedent, with only the differences showing.
Every Precedent side by sideUnit specs
Specs for the S-700, with their test conditions.
Refrigeration capacity
| Box temperature | Engine Power w/ETV | Electric Power |
|---|---|---|
| 35°F | 68,000 BTU/hr | 50,000 BTU/hr |
| 0°F | 37,000 BTU/hr | 35,000 BTU/hr |
| -20°F | 23,000 BTU/hr | 23,000 BTU/hr |
System net cooling capacity at 100°F ambient and high speed engine operation. Electric power: Thermo King offers several electric standby options; ask your shop about performance on the one you choose.
Heating capacity
| Engine Power w/ETV | 72,000 BTU/hr |
|---|
System net heating capacity at 35/0°F ambient.
Airflow capacity
| Volume at 0 Pa static pressure | 3,300 ft³/min |
|---|
Engine
| Model | TK488CRH |
|---|---|
| RPM at High Speed | 2,600 |
| RPM at Low Speed | 1,450 |
| HP Rating at 2,600 RPM | 35.0 |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs/4,000 hrs |
Four cylinder, direct injection, liquid cooled.
Compressor
| Model | X430L |
|---|---|
| Displacement | 30.0 in³ |
Lightweight aluminum alloy body, heads and sump.
Refrigerant
| Type | R452A |
|---|---|
| Charge | 14.5 lbs |
Zero Ozone Depletion Potential (ODP), internationally approved.
Weight
| System | 1,882 lbs |
|---|---|
| 50 gallon fuel tank (with bracket) | 76 lbs |
Wet with battery.
CARB/EPA compliance
| California Air Resources Board (CARB) | Evergreen Certification since 2013 |
|---|---|
| EPA | Complies with highest possible EPA standards (>25HP Tier IV) |
Standard and optional
- StandardSmart Reefer® SR-4 controller for superior temperature control · Factory equipped with 24 months complimentary TracKing® Telematics · ServiceWatch enabled for maintenance monitoring · OptiSet® Plus cargo profiles for maintaining product integrity · Diesel Direct Electric (DDE) architecture for maximized fuel efficiency · Common rail fuel injection with real-time monitoring · 2-stage fuel filtration system · Microchannel condenser coils · 2-speed evaporator · Simple user interface with USB service diagnostics · 50-gallon aluminum undermount fuel tank w/visual fuel level gauge
- OptionsTemperature data logger for enhanced load protection · Customizable appearance: LED lighting kit, Chrome package · Arctic package · Severe duty package · ThermoLite® solar panels · Alternator, 65amp, 12Vdc · Battery charger · Supplemental power kit · SmartPower™ prep package · SmartPower™ electric standby: Standard and High Output (HO) options
Resources
Spec sheets, brochures and manuals for the S-700. Each opens on thermoking.com.
Every spec sheet and manual- Spec sheetPrecedent S-700 specification sheetPDF · 191 KB · TK 55871-2-PLOpen Precedent S-700 specification sheet (PDF, opens in a new tab)
- Operator's manualPrecedent single-temperature units operator's manual (C-600, S-600 and S-700)PDF · 3 MB · TK 56218-2-OPOpen Precedent single-temperature units operator's manual (C-600, S-600 and S-700) (PDF, opens in a new tab)
- Installation manualPrecedent C-600, S-600 and S-700 installation manualPDF · 65 MB · TK 55496-2-IMOpen Precedent C-600, S-600 and S-700 installation manual (PDF, opens in a new tab)
- BrochureTrailer portfolio brochurePDF · 3 MB · TK 56862-3-PLOpen Trailer portfolio brochure (PDF, opens in a new tab)
- Warranty statementEPA and ARB supplemental emissions warranty statementPDF · 189 KB · TK 56690-9-WAOpen EPA and ARB supplemental emissions warranty statement (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the Precedent S-700.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the S-700. Anything else, call your shop.
When should I choose the S-700 over the S-600?
When your single-zone fleet operates in California and runs at a -20°F set point more than 50% of the time. At -20°F on engine power, the S-700 is rated at 23,000 BTU/hr and the S-600 at 19,000.
Can I run it in California?
Yes. The S-700 has held CARB Evergreen Certification since 2013, and its capacity is paired with the CARB ULETRU compliant S-Series engine, without the need for a DPF.
What refrigerant does it use?
R452A, with a 14.5 lb charge. It reduces the carbon footprint of refrigerants used by fleets by nearly 50%.
Is telematics included?
Yes. The S-700 comes factory equipped with 24 months of complimentary TracKing telematics.
How often does the engine need service?
The maintenance interval is 3,000 hrs/4,000 hrs. Your shop can tell you which applies to your unit.
Can it run on electric power?
With an option: SmartPower electric standby, in Standard and High Output (HO) versions, plus a SmartPower prep package. On electric power the S-700 is rated at 23,000 BTU/hr at -20°F, the same as on engine power. There are several electric standby options, so ask your shop for the performance of the one you choose.
What options can I add?
A temperature data logger, LED lighting and chrome appearance options, an Arctic package, a severe duty package, ThermoLite solar panels, a 65 amp alternator, a battery charger, a supplemental power kit, and SmartPower prep or electric standby.
Does Thermo King’s Extended Warranty cover it?
Thermo King’s Extended Warranty covers the Precedent S-600 / S-700 / C-600, with full-unit and major-component options. Ask your shop for the terms.
