Thermo King V-Series direct drive
V-220 Series
Optimal for small insulated vans or compartmental applications.
Why the V-220 Series
No extra diesel engine to maintain
The road compressor runs off the vehicle's engine, so there's no extra diesel engine on the unit to maintain.
Low noise in all conditions
If you deliver in areas with noise restrictions, direct-drive units offer low noise levels in all operating conditions.
Fresh or frozen
The V-220 suits fresh loads, and the V-220 MAX uses R-452A for frozen loads down to -20°F.
Plug in with SmartPower
The SmartPower electric standby option lets the unit run plugged in with the engine off.
Ideal for demanding conditions
V-Series units function in ambient temperatures up to 122°F, in both the R-134A fresh and the R-452A frozen versions.
Overview
- 5,930BTU/hrV-220: cooling at 35°F on engine power
- 7,160BTU/hrV-220 MAX: cooling at 35°F on engine power
- 3,170BTU/hrV-220 MAX: cooling at -20°F on engine power
- Up to122°FAmbient temperatures the units work in

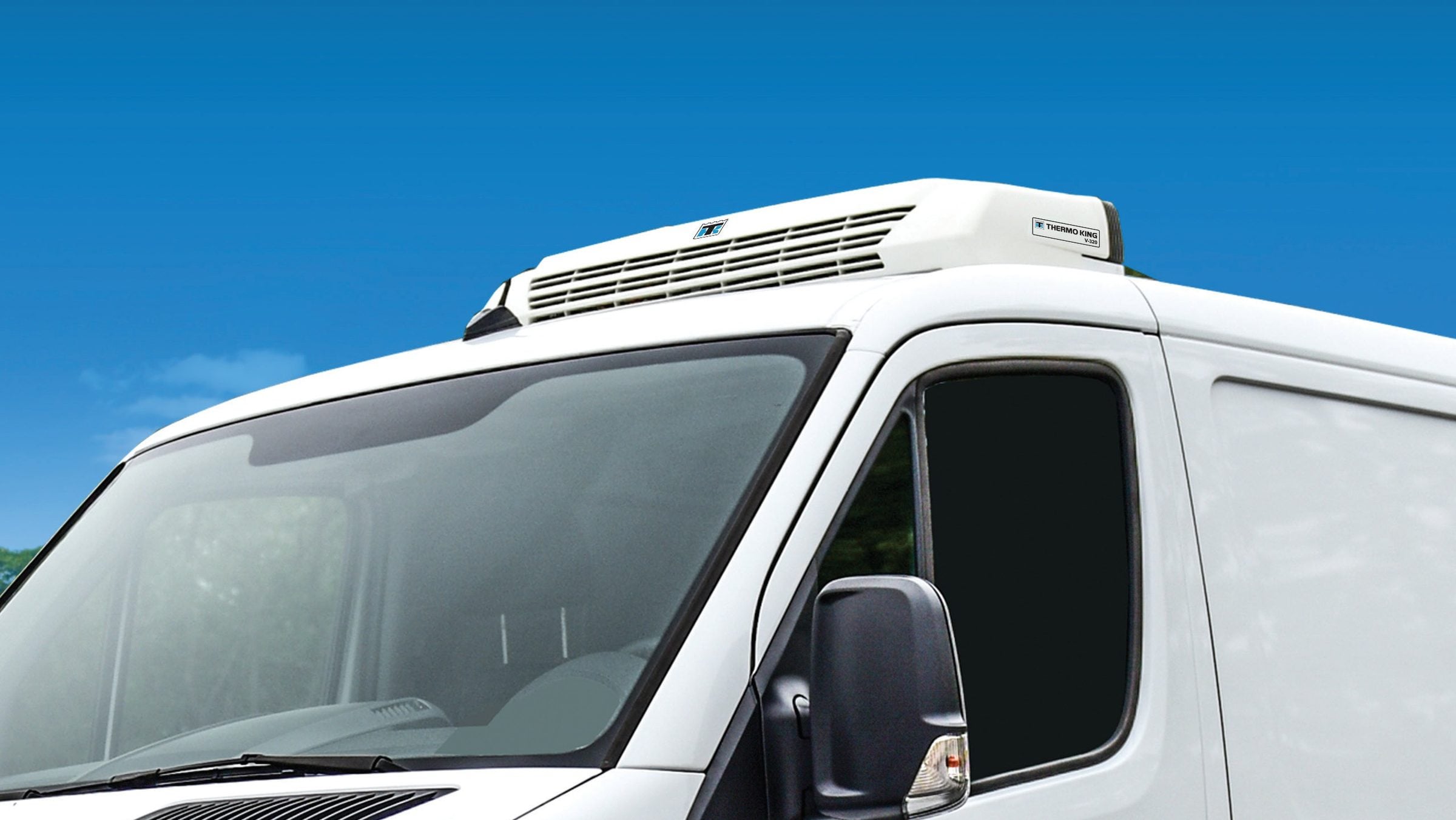

The V-220 series vehicle-powered refrigeration units are designed for small insulated vans or compartmental applications. The refrigeration system uses an engine-mounted compressor and is available in a MAX configuration for higher capacity needs, such as delivery of frozen goods. The V-220 also offers a coolant heat option.
Driven by the vehicle.
What Thermo King built into the V-220 Series.
Driven by the vehicle.
The V-220 runs its road compressor off the vehicle's engine, so there's no extra diesel engine to maintain. Direct-drive units run at low noise levels in all operating conditions.
- SmartPower electric standby option on every model
- Automatic hot gas defrost
- Jet Lube compressor lubrication; Jet Cool compressor injection cooling on MAX units
Fresh or frozen.
The V-220 uses R-134A for fresh loads; it's rated at 0°F but locked out below 25°F to protect the system. The V-220 MAX uses R-452A for frozen loads and more capacity, down to -20°F.
Built for the road.
- Direct Smart Reefer controllerIn-cab controller, the DSR III
- Door switch kitTurns the refrigeration off when the doors open to limit load temperature rise and save fuel, and restarts it when they close
- DIN adaptorLets the controller fit any available radio slot in the dashboard
- Hose coversMetal or plastic kits that protect hoses and cables
- Muffler kitKeeps unit vibration and noise out of the driver's cab
- Snow coversKeep snow and ice off the condenser fan blades
- HeatingEngine coolant heat (14,400 BTU/hr) or electric heater strips (5,000)
Compare the V-220.
Side by side with another van and small-truck unit, with only the differences showing.
Every truck unit side by sideUnit specs
Specs for the V-220 and V-220 MAX, with their test conditions.
Refrigerant
| Specification | V-220 | V-220 MAX |
|---|---|---|
| Type | R-134A | R-452A |
On the V-220 and V-320, R-134A is "Ideally suited for fresh applications - temperature locked out below 25°F"; R-452A is "Ideally suited for higher capacity frozen applications".
Refrigeration capacity: engine power (BTU/hr)
| Return air to evaporator | V-220 | V-220 MAX |
|---|---|---|
| 35°F | 5,930 | 7,160 |
| 0°F | N/A | 4,775 |
| -20°F | 3,170 |
System net cooling capacity at 100°F ambient. V-220 and V-320: high speed engine operation. Non-MAX R-134A units are rated at 0°F but not allowed to operate below 25°F due to system protection. A blank cell means no figure is listed.
Refrigeration capacity: SmartPower electric standby (BTU/hr)
| Return air to evaporator | V-220 | V-220 MAX |
|---|---|---|
| 35°F | 4,700 | 5,250 |
| 0°F | N/A | 3,410 |
| -20°F | 2,265 |
All standby capacities rated with 230 VAC option.
Evaporator and airflow
| Specification | V-220 | V-220 MAX |
|---|---|---|
| Evaporator | ES220 | ES220 |
| Airflow | 650 cfm | 650 cfm |
Heating (optional, BTU/hr)
| Specification | V-220 | V-220 MAX |
|---|---|---|
| Engine coolant heat | 14,400 | 14,400 |
| Electric heater strips | 5,000 | 5,000 |
| Hot gas heating, truck engine | N/A | N/A |
| Hot gas heating, electric standby | N/A | N/A |
Hot gas heat is not available on the V-220 Series.
Road compressor
| Specification | V-220 | V-220 MAX |
|---|---|---|
| Compressor | TK 13 (typical), engine mounted | TK 13 (typical), engine mounted |
| Displacement | 7.99 in³ | 7.99 in³ |
V-220 and V-320 standby compressor: 6 cylinder, housed in the condensing unit on standby systems.
Electric standby: total current
| Specification | V-220 | V-220 MAX |
|---|---|---|
| 230V/3 Phase/60 Hz | 11.0 A | 11.0 A |
| 230V/1 Phase/60 Hz | 14.0 A | 14.0 A |
| 115V/1 Phase/60 Hz | 22.0 A | 22.0 A |
Weight
| Specification | V-220 | V-220 MAX |
|---|---|---|
| Condenser without SmartPower | 73 lbs | 73 lbs |
| Condenser with SmartPower | 155.3 lbs | 155.3 lbs |
| Evaporator | 29.5 lbs (ES220) | 29.5 lbs (ES220) |
| Installation kit | 11.2 lbs | 11.2 lbs |
| Heating kits | 20 lbs | 20 lbs |
V-220 and V-320: condenser weights for the 10/10 MAX (without SmartPower) and 20/20 MAX (with SmartPower); installation kit weight excludes the hose kit.
Electrical
| Specification | V-220 | V-220 MAX |
|---|---|---|
| DC voltage | 12VDC | 12VDC |
| SmartPower electric standby | 115 or 230 VAC | 115 or 230 VAC |
Standard and optional
- StandardEngine-driven compressor · Direct Smart Reefer controller · automatic hot gas defrost · Jet Lube compressor lubrication · Jet Cool compressor injection cooling (MAX units) · installation kit
- OptionsSmartPower electric standby · heating package · door switch kit · DIN adaptor · hose covers · muffler kit · snow covers
- V-800 rangeV-800 MAX 10 · V-800 MAX 20 · V-800 10 · V-800 20 (10 = road compressor only; 20 = road compressor plus standby power)
Resources
Spec sheets, brochures and manuals for the V-220 and V-220 MAX. Each opens on thermoking.com.
Every spec sheet and manual- BrochureDirect Drive Truck Units brochurePDF · 4.7 MB · TK 56197-18-PLOpen Direct Drive Truck Units brochure (PDF, opens in a new tab)
- Operator's manualV-Series units with Direct Smart Reefer operator's manualPDF · 9.9 MB · TK 61651-18-OP-ENOpen V-Series units with Direct Smart Reefer operator's manual (PDF, opens in a new tab)
- Installation manualV-220 and V-320 Series installation manualPDF · 11 MB · TK 56321-18-IM-ENOpen V-220 and V-320 Series installation manual (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.

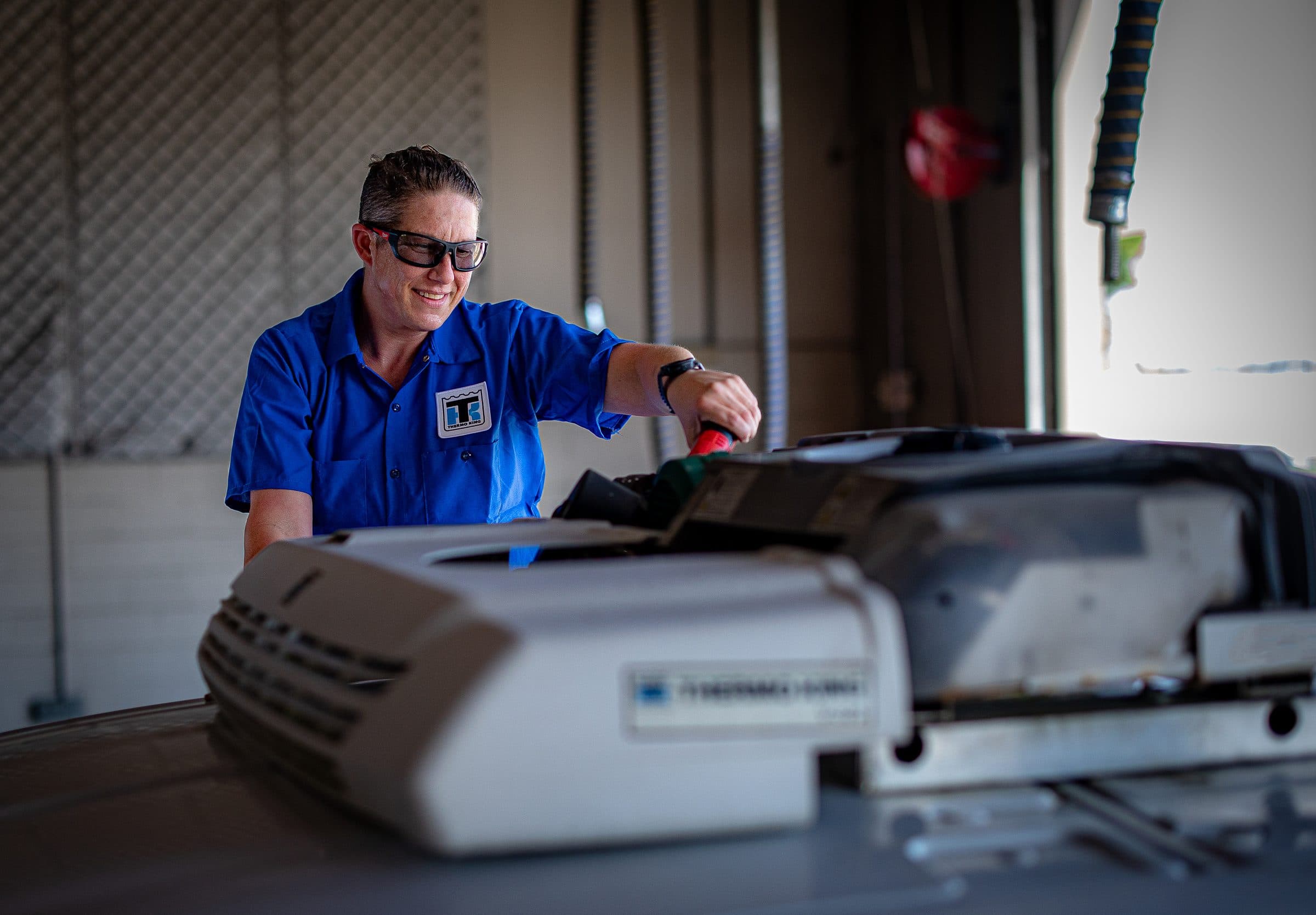

Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the V-220 Series.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the V-220 and V-220 MAX. Anything else, call your shop.
Which V-Series unit fits my van or truck?
The box-size guide starts with the V-220 for a 6-foot box at 35°F and runs to the V-800 MAX for 20- and 22-foot boxes. Frozen loads move up a size: at 0°F a 6-foot box takes a V-220 MAX, and at -20°F, ask your shop about boxes of 18 feet and up.
What's the difference between standard and MAX?
The V-220 uses R-134A and suits fresh loads; it's locked out below 25°F to protect the system. The V-220 MAX uses R-452A for frozen loads and more capacity: it's rated at 7,160 BTU/hr at 35°F on engine power, against 5,930 for the V-220.
Can it run with the engine off?
Yes, plugged in, with the SmartPower electric standby option: 115 or 230 VAC.
Can it heat?
Yes, with engine coolant heat (14,400 BTU/hr) or electric heater strips (5,000).
Do direct-drive units need CARB registration?
No. Because the units have no emissions, the CARB TRU Exemption saves you time and money by not having to register units or do expensive compliance upgrades. That's a California rule; check CARB's current requirements if you run there.
Who services it?
TKSE's factory-trained technicians, in its shops and on its mobile service trucks.
