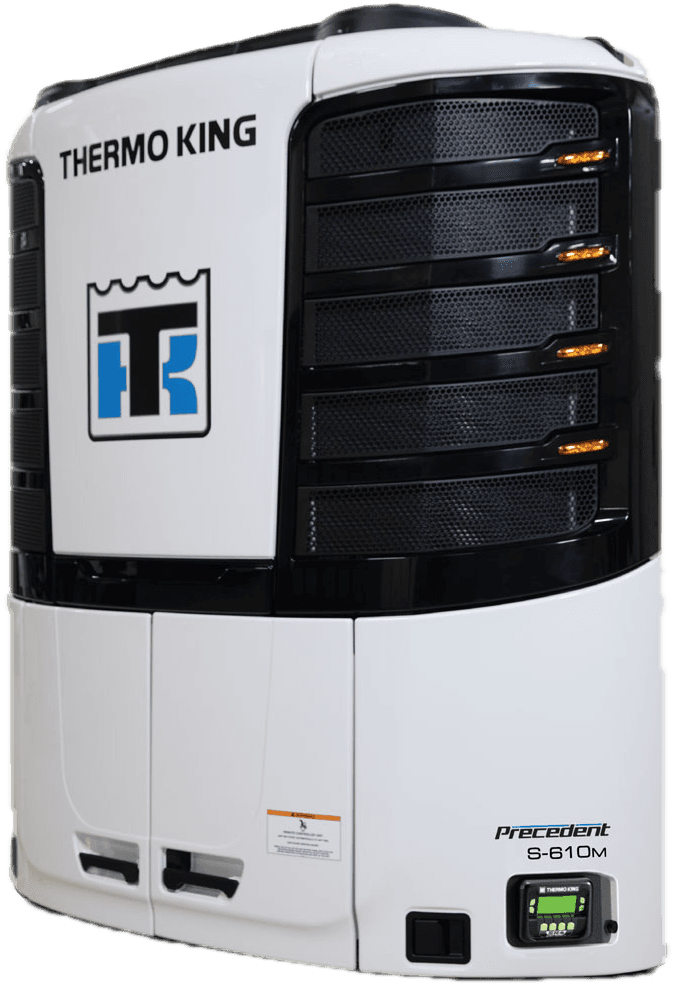

Thermo King Precedent S-610M
The Precedent S-610M multi-temp reefer offers CARB Evergreen certification, so no DPF will ever be required.
Why the S-610M
Haul fresh and frozen together
Run two or three temperature zones in one trailer, and any compartment can be set at any temperature.
No DPF, ever
CARB Evergreen certification since 2013 means no diesel particulate filter (DPF) will ever be required.
57,500 BTU/hr of cooling at 35°F
Net cooling capacity on engine power at 100°F ambient and high speed engine operation, measured with a remote evaporator.
Superior temperature control
The Smart Reefer SR-4 controller gives superior temperature control, and OptiSet Plus cargo profiles help maintain product integrity.
TracKing telematics built in
Factory equipped with complimentary TracKing telematics, which helps monitor temperature and detects fuel loss.
Maximized fuel efficiency
Diesel Direct Electric (DDE) architecture is built for maximized fuel efficiency.
Overview
- 57,500BTU/hrCooling at 35°F on engine power, measured with a remote evaporator
- 3zonesUp to three temperature zones, with up to four remote evaporators
- 50statesS-Series emissions compliance since 2013
- 24monthsOf complimentary TracKing telematics, factory equipped
Thermo King built the S-610M on its Precedent S-Series platform and optimized it for food distribution: the host unit cools zone 1 and remote evaporators cool the others, for two or three zones in one trailer. It is CARB Evergreen certified, so it needs no DPF, and it uses R452A refrigerant.
Fresh and frozen, one trailer.
What Thermo King built into the S-610M for mixed loads: zones, emissions, and telematics.
Two or three zones.
Thermo King designs its multi-temp systems to control two or three compartments, and any compartment can be set at any temperature. On the S-610M, the host unit's evaporator controls zone 1 and a ceiling-mounted remote evaporator controls zone 2; a three-zone trailer adds remote evaporators for zone 3.
- Supports 1, 2, and 3 zone operation with up to four remote evaporators
- Numerous zone configurations within the trailer
- Zone 1 runs whenever the unit is on; zones 2 and 3 can be turned on and off as needed
Walls between the zones.
Insulated bulkheads separate a multi-temp trailer into zones, each with its own setpoint. Thermo King's PrimAir insulated bulkheads enable consistent temperature zones, and a multiple-compartment trailer should have a center bulkhead with tight air seals. To haul one temperature, move the dividing walls to make one compartment; with Single Zone Control enabled, every zone runs to the same setpoint.
No DPF, ever.
Thermo King developed the Precedent S-Series to achieve Evergreen CARB and EPA emissions compliance without a diesel particulate filter. The S-610M has held CARB Evergreen certification since 2013, complies with the highest possible EPA standards for engines over 25 HP (Tier IV), and is CARB ULETRU compliant.
- No need for a diesel particulate filter (DPF)
- CARB Evergreen certification since 2013
- EPA >25 HP Tier IV
Connected from the factory.
Every S-610M comes from the factory with 24 months of complimentary TracKing telematics. It helps monitor temperature, offers rapid alarm detection and security alerts when the doors are opened, and detects fuel loss.
Built for the road.
- Smart Reefer SR-4 controllerWith ServiceWatch maintenance monitoring and a simple user interface with USB service diagnostics.
- OptiSet PlusCargo profiles for maintaining product integrity.
- Diesel Direct Electric (DDE)Thermo King's architecture for maximized fuel efficiency.
- Common rail fuel injectionWith real-time monitoring and a 2-stage fuel filtration system.
- Microchannel condenser coilsPaired with a 2-speed evaporator.
- Composite doorsLong-life door panels with auto-latch and auto secondary latch on front doors.
Compare the S-610M.
Side by side with another multi-temperature Precedent, with only the differences showing.
Every Precedent side by sideUnit specs
Specs for the S-610M, with their test conditions.
Refrigeration capacity
| Box temperature | Engine Power w/ETV, BTU/hr | Engine Power w/ETV, Watts | Electric Power*, BTU/hr | Electric Power*, Watts |
|---|---|---|---|---|
| 35°F | 57,500 | 16,852 | 44,000 | 12,896 |
| 0°F | 30,500 | 8,939 | 30,500 | 8,939 |
| -20°F | 18,000 | 5,275 | 18,000 | 5,275 |
System net cooling capacity with 1-S3 remote evap at 100°F ambient and high speed engine operation. Electric power: Thermo King offers several electric standby options; ask your shop about performance on the one you choose.
Heating capacity
| Engine Power w/ETV, BTU/hr | 43,000 |
|---|
System net heating capacity at 35/0°F ambient.
Airflow capacity
| Volume at 0 Pa static pressure | 3,300 ft³/min |
|---|
Engine
| Model | TK488CR |
|---|---|
| RPM at High Speed | 2,050 |
| RPM at Low Speed | 1,250 |
| HP Rating at 2,050 RPM | 33 |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs/4,000 hrs |
Four cylinder, direct injection, liquid cooled.
Compressor
| Model | X430L |
|---|---|
| Displacement | 30.0 in³ |
Lightweight aluminum alloy body, heads and deep sump.
Refrigerant
| Type | R452A |
|---|---|
| Charge | ~17 lbs |
Zero Ozone Depletion Potential (ODP), internationally approved.
Weight
| System | 1,918 lbs |
|---|---|
| 50 gallon fuel tank (with bracket) | 76 lbs |
CARB/EPA compliance
| California Air Resources Board (CARB) | Evergreen Certification since 2013 |
|---|---|
| EPA | Complies with highest possible EPA standards (>25HP Tier IV) |
Standard features and options
- Standard featuresSmart Reefer® SR-4 controller for superior temperature control · Factory equipped with 24 months complimentary TracKing® Telematics · ServiceWatch enabled for maintenance monitoring · OptiSet® Plus cargo profiles for maintaining product integrity · Diesel Direct Electric (DDE) architecture for maximized fuel efficiency · Common rail fuel injection with real-time monitoring · 2-stage fuel filtration system · Microchannel condenser coils · 2-speed evaporator · Simple user interface with USB service diagnostics · 50-gallon aluminum undermount fuel tank w/visual fuel level gauge
- OptionsTemperature data logger for enhanced load protection · Customizable appearance (LED lighting kit, Chrome package) · Arctic package · Severe duty package · ThermoLite® solar panels · Alternator, 65amp, 12Vdc · Battery charger · Supplemental power kit · SmartPower™ prep package · SmartPower™ electric standby (Standard and High Output (HO) options)
Resources
Spec sheets, brochures and manuals for the S-610M. Each opens on thermoking.com.
Every spec sheet and manual- Spec sheetPrecedent S-610M specification sheetPDF · 201 KB · TK 56345-2-PLOpen Precedent S-610M specification sheet (PDF, opens in a new tab)
- Operator's manualPrecedent multi-temp operator's manualPDF · 4 MB · TK 56171-2-OPOpen Precedent multi-temp operator's manual (PDF, opens in a new tab)
- Installation manualPrecedent multi-temp installation manual (host unit)PDF · 44 MB · TK 55745-2-IMOpen Precedent multi-temp installation manual (host unit) (PDF, opens in a new tab)
- BrochureTrailer portfolio brochurePDF · 3 MB · TK 56862-3-PLOpen Trailer portfolio brochure (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the Precedent S-610M.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the S-610M. Anything else, call your shop.
How many temperature zones can the S-610M run?
Two or three. The host unit's evaporator controls zone 1 and a remote evaporator controls zone 2; a three-zone setup adds remote evaporators. Thermo King's multi-temp platform supports up to four remote evaporators.
What's the difference between the S-610M and the S-610DE?
The S-610M builds its extra zones with remote evaporators. The S-610DE runs two zones without remote evaporators, side by side down the length of the trailer. For California fleets, the S-610DE is the pick if you prefer dual lane loading, and the S-610M if you don't.
Can I run it in California?
Yes. The S-610M has held CARB Evergreen certification since 2013 and is CARB ULETRU compliant, with no DPF required.
Can it run on electric standby?
As an option. SmartPower electric standby comes in standard and high output (HO) versions, with 230-volt and 460-volt three-phase motors. On electric power the S-610M is rated at 44,000 BTU/hr at 35°F; ask your shop for the performance of a specific option.
What refrigerant does it use?
R452A, with a charge of about 17 lbs. It reduces the carbon footprint of refrigerants used by fleets by nearly 50%.
Is telematics included?
Yes. Every S-610M is factory equipped with 24 months of complimentary TracKing telematics.
How often does it need service?
The maintenance interval is 3,000 or 4,000 hours, and the 1,500-, 3,000-, and 4,500-hour/annual inspections should be performed by an authorized Thermo King dealer. TKSE is one, with factory-trained technicians at seven shops in Florida, Georgia, and Mississippi.
Can a multi-temp trailer haul a single-temperature load?
Yes. Reposition the dividing walls to make one large compartment; with Single Zone Control enabled, all zones run to the same setpoint.
