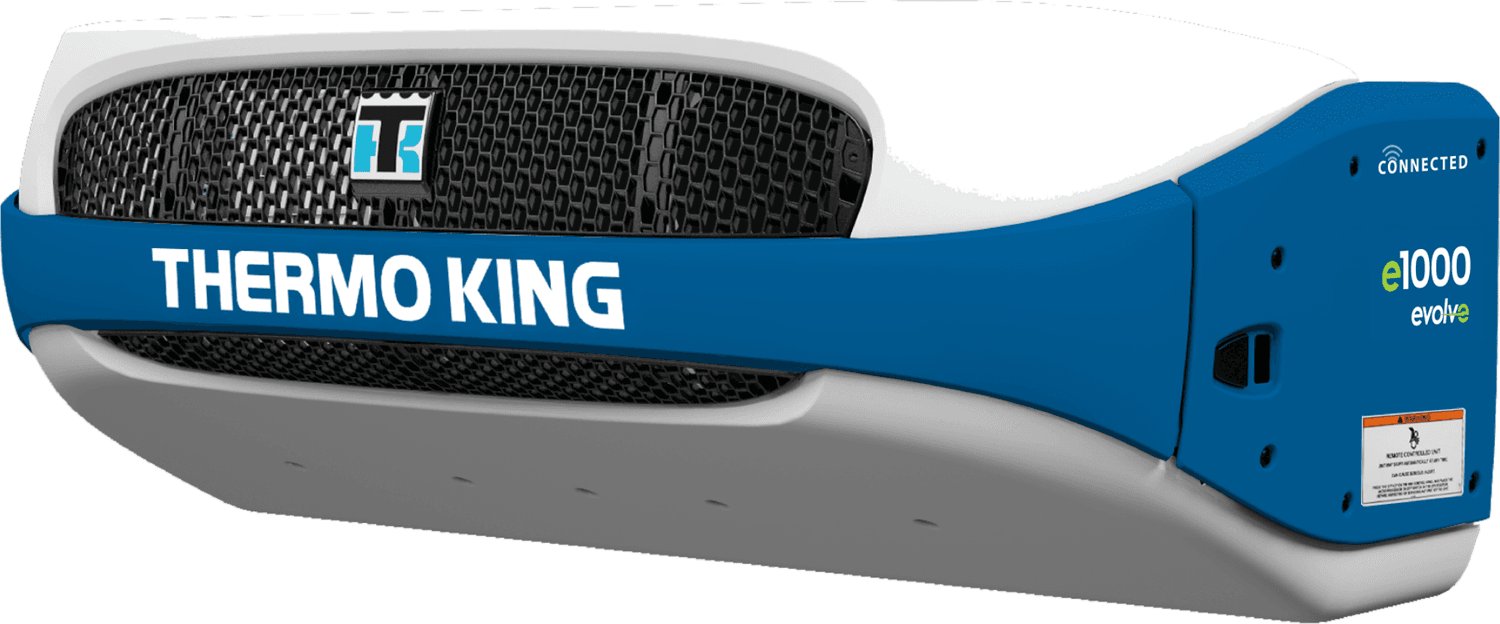

Thermo King all-electric truck unit
e1000
The e1000 is a fully electric transport refrigeration unit with zero emissions for large trucks.
Why the e1000
Fully electric, zero emissions
The e1000 is a fully electric transport refrigeration unit with zero emissions, designed for Class 5–7 battery-electric trucks.
Matches diesel reefer performance

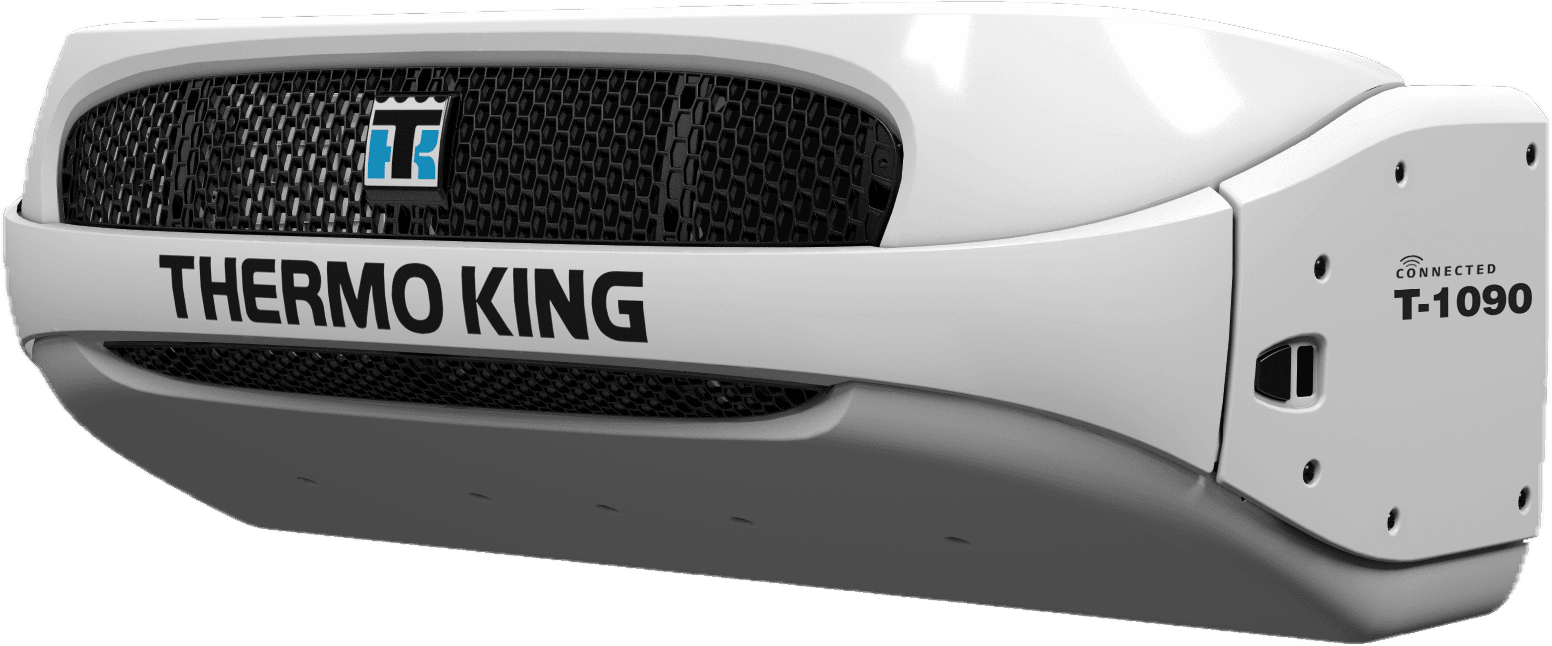

The e1000 matches the performance of equivalent capacity diesel reefers, with cooling capacity comparable to the T-1090.
Minimal impact on range
It requests truck power only when needed, with minimal impact on electric chassis range and cooling that continues while charging.
No diesel, less maintenance
It has no diesel fuel costs and needs less maintenance than diesel equivalents.
Quieter and lighter than diesel
It makes less sound and vibration than equivalent capacity diesel units and is lighter than equivalent diesel units.
Standard 4-year comprehensive warranty
It includes a standard 4-year comprehensive warranty. Ask your shop for the details.
Overview
- 16–28ftBox lengths it supports, with fresh and frozen setpoints
- Class5–7The battery-electric trucks Thermo King designed it for
- 4yearsStandard comprehensive warranty; your shop has the details
- 13kWhEnergy for a ten-hour route, 22-foot box at 35°F
The e1000 is Thermo King's all-electric refrigeration unit for Class 5–7 battery-electric box trucks, part of its evolve portfolio. It runs from a direct DC connection to the truck's battery pack, supports boxes from 16 to 28 feet with fresh and frozen setpoints, and it meets regulations for zero emissions, including CARB.
Runs on the truck's battery.
How the e1000 works with an electric chassis.
Powered by the truck.
The e1000 runs from a direct DC connection to the truck's own battery pack and only asks for power when it needs it. It has minimal impact on the truck's range, and cooling continues while the truck charges.
- 400 Vdc nominal supply on the Freightliner eM2 version; 800 Vdc on the International eMV version
- Variable speed scroll compressor and fans
- Electric heat and defrost
Made for two electric trucks.

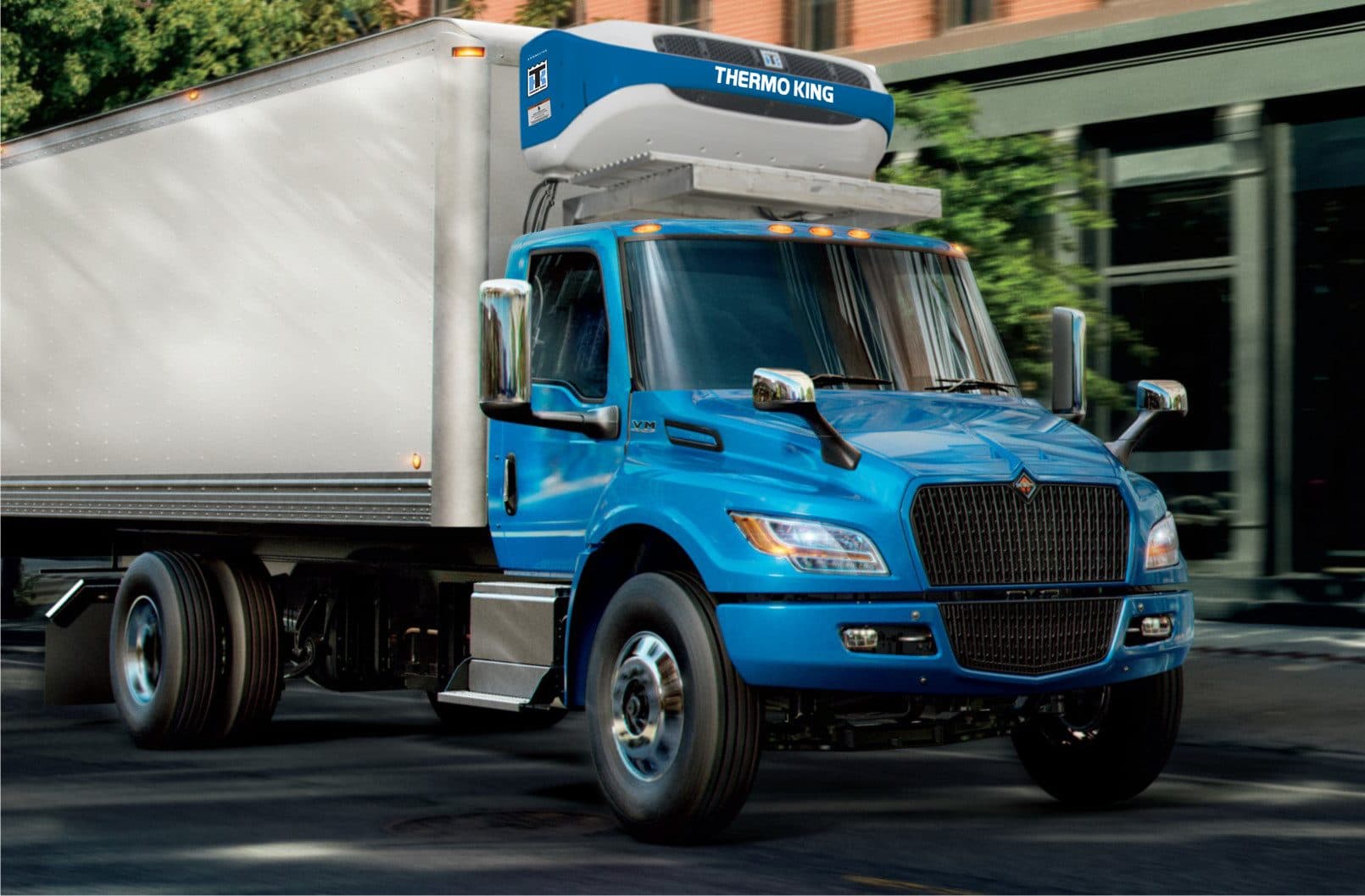

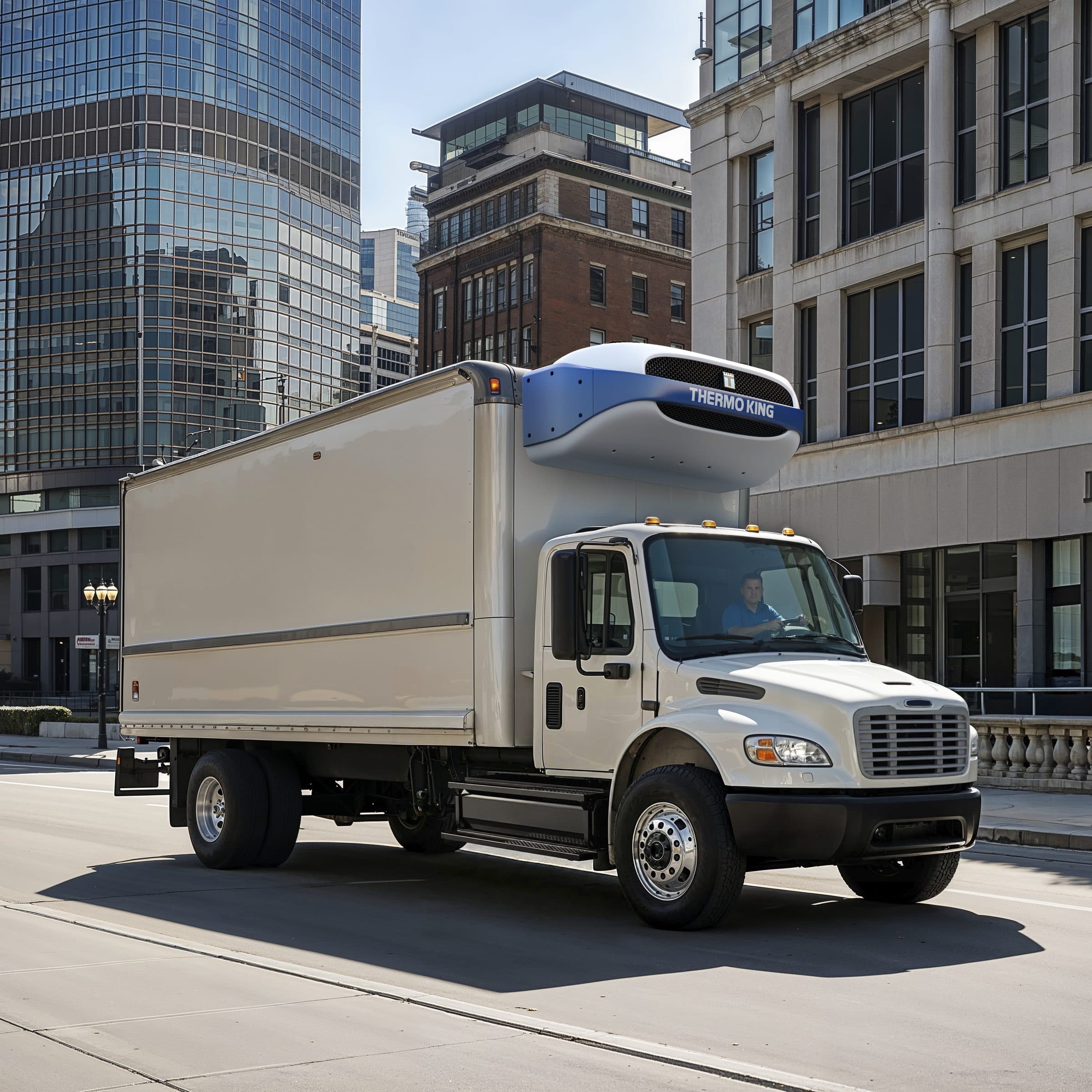

The e1000 comes in versions for the International eMV and the Freightliner eM2 electric box trucks, each with its own order code and electric power takeoff (ePTO) connection. It mounts on the front of the cargo box, with the evaporator inside.
No diesel to run.
The e1000 has no diesel fuel costs and needs less maintenance than diesel equivalents. It makes less sound and vibration than equivalent capacity diesel units, it's lighter than equivalent diesel units, and it uses lower global warming potential R-452A refrigerant.
Telematics from day one.
The e1000 ships with TracKing telematics hardware installed and ready to turn on. It supports energy consumption reports and over-the-air updates.
Built for the road.
- HMI controllerEasy-to-use, with a graphic color screen
- MonitoringContinuous temperature and battery voltage monitoring
- EconomizerFor increased cooling performance
- PretripAn on-board self-check to run before the day's route
- SolarA ThermoLite 110W solar panel charges the battery that powers telematics
- Evolve portfolioPart of Thermo King's evolve line of all-electric products
Compare the e1000.
Side by side with another large-truck unit, with only the differences showing.
Every truck unit side by sideUnit specs
Specs for the e1000, with their test conditions.
Ordering codes
| Thermo King e1000 order code | Truck brand | Truck model | Truck class | ePTO customer selected sales code | Sales code description |
|---|---|---|---|---|---|
| 905063M | International | eMV | Class 6 or 7 | 0008PAB | HVDC power AC connector |
| 905888M | Freightliner | eM2 | Class 7 | 4BP-001, 4BQ-001 | electric power receptacle, 400VDC - 20 kW continuous power |
Refrigeration system
| Refrigerant charge | 7.5 lbs (3.4 Kg) R-452A |
|---|---|
| Scroll compressor | Thermo King ZFW050AE Series Hermetic Scroll Compressor; Three-Phase AC, Internal Permanent Magnet (IPM), 6-Pole |
| Compressor RPM | 1000-7000 RPM |
| Heat/defrost method | Electric heater bars |
Same values for the Freightliner eM2 and International eMV versions.
Electrical supply
| Specification | Freightliner eM2 version | International eMV version |
|---|---|---|
| High voltage electrical supply to e1000 | 400 Vdc Nominal From Truck Chassis Battery Pack (OEM supplied) | 800 Vdc Nominal From Truck Chassis Battery Pack (OEM supplied) |
| e1000 low voltage | 12 Vdc | 12 Vdc |
| e1000 scroll compressor | 230 Vac (supplied by combo device inverter function) | 230 Vac (supplied by combo device inverter function) |
| Solar panel option | 110 Watt Panel, 5 Amp Controller | 110 Watt Panel, 5 Amp Controller |
Operator's manuals TK 57141-1-OP-EN (eM2, Revision C, May 2025) and TK 57504-1-OP-EN (eMV, Revision B, May 2025).
Energy use per route
| Box size | 35°F setpoint | -5°F setpoint |
|---|---|---|
| 14' | 10 kWh | 24 kWh |
| 16' | 11 kWh | 25 kWh |
| 18' | 11 kWh | 26 kWh |
| 20' | 12 kWh | 28 kWh |
| 22' | 13 kWh | 29 kWh |
| 24' | 13 kWh | 31 kWh |
| 26' | 14 kWh | 33 kWh |
| 28' | 14 kWh | 34 kWh |
Assuming 3" of insulation for 35°F, and 4" for -5°F at an 80°F ambient; ten door openings for ten minutes each per day on a ten hour route with box pre-cooled to setpoint; box dimensions of 96"W and 96"H on trucks 10' and over in length. Unit selection may vary.
Standard and optional
- StandardAll-electric operation · HMI controller with graphic color screen · continuous temperature and battery voltage monitoring · variable speed scroll compressor and evaporator fans · economizer · electric heat and defrost · R-452A refrigerant · ConnectedSuite TracKing telematics · ThermoLite 110W solar panel · door switch · coolant expansion tank with extended life coolant · aerodynamic thermoplastic body panels · robotic welded steel frame · top screen
- OptionsCargo door switch (for two doors) · stud unit mounting kit
Resources
Spec sheets, brochures and manuals for the e1000. Each opens on thermoking.com.
Every spec sheet and manual- Brochuree1000 all-electric transport refrigeration unit brochurePDF · 8.6 MB · TK 57264-1-PLOpen e1000 all-electric transport refrigeration unit brochure (PDF, opens in a new tab)
- Operator's manuale1000 operator's manual, Freightliner eM2PDF · 9.3 MB · TK 57141-1-OP-ENOpen e1000 operator's manual, Freightliner eM2 (PDF, opens in a new tab)
- Operator's manuale1000 operator's manual, International eMVPDF · 9.8 MB · TK 57504-1-OP-ENOpen e1000 operator's manual, International eMV (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the e1000.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the e1000. Anything else, call your shop.
Which trucks does the e1000 fit?
The International eMV (Class 6 or 7) and the Freightliner eM2 (Class 7) electric box trucks, each with its own order code.
How much cooling does it have?
The e1000 matches the performance of equivalent capacity diesel reefers, with cooling capacity comparable to the T-1090. There's no published e1000 capacity table, so ask your shop to size it for your route.
How much battery does it use?
A 22-foot box on a ten-hour route uses 13 kWh at 35°F and 29 kWh at -5°F, under the route assumptions in the specs. The e1000 has minimal impact on the truck's range, and cooling continues while the truck charges.
What box sizes does it support?
16 to 28 feet, with fresh and frozen setpoints.
What's the warranty?
A standard 4-year comprehensive warranty. Ask your shop for the details.
Does it come with telematics?
Yes. It ships with TracKing telematics hardware installed and ready to turn on.
What refrigerant does it use?
R-452A, a lower global warming potential refrigerant, with a 7.5 lb charge.
Who services it?
TKSE's factory-trained technicians, in its shops and on its mobile service trucks.

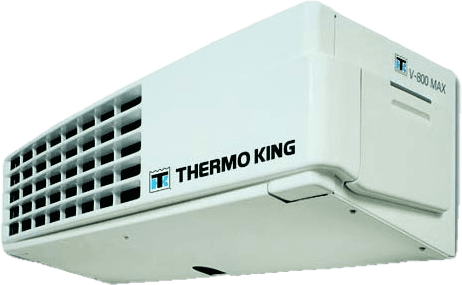

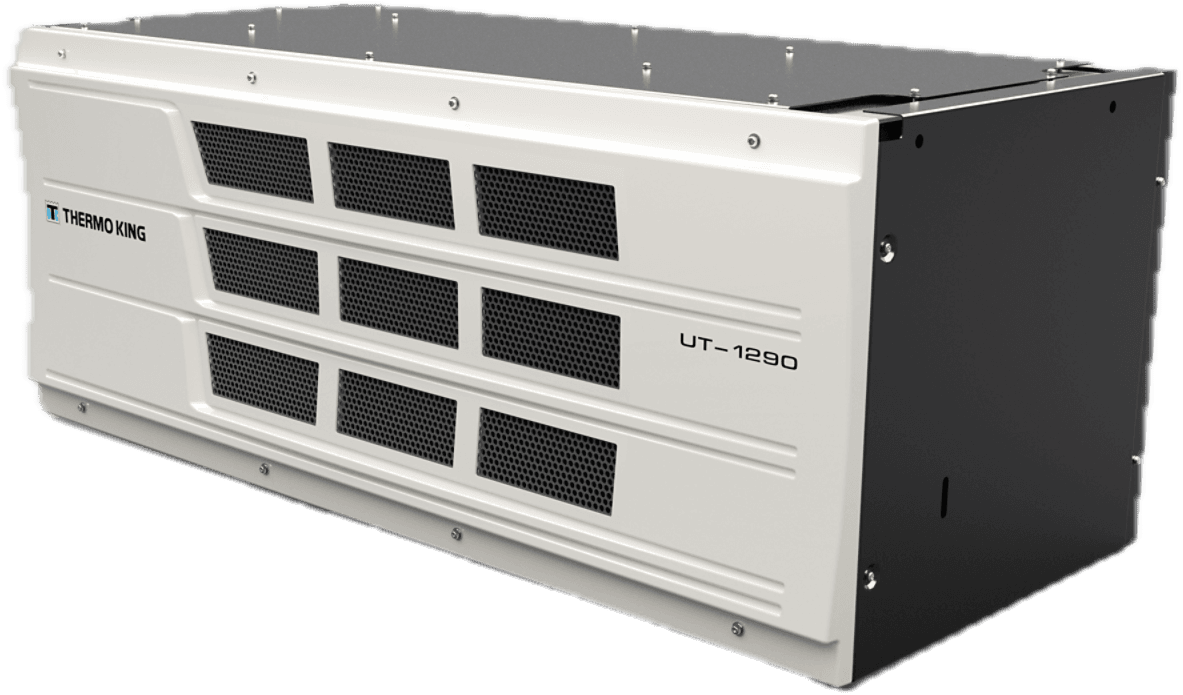

Other Thermo King truck units
