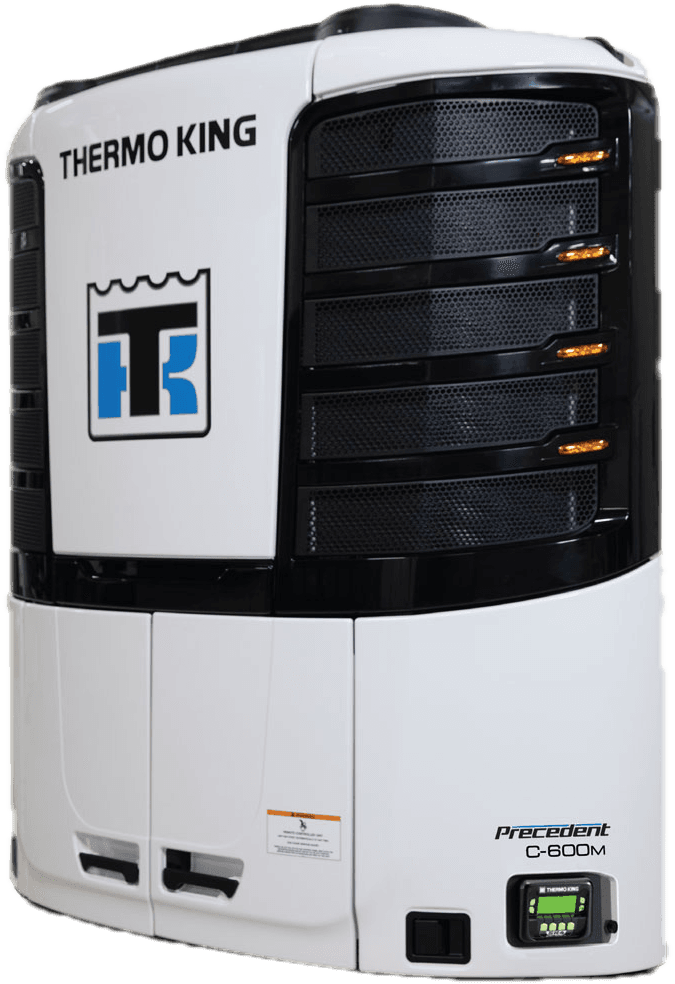

Thermo King Precedent C-600M
Enjoy the benefits of Precedent in a cost-effective, multi-temp package with the C-600M reefer.
Why the C-600M
A cost-effective multi-temp reefer
Enjoy the benefits of the Precedent platform and superior Thermo King technology in a multi-temp package.
Two or three temperature zones
Run two or three temperature zones in one trailer, and any compartment can be set at any temperature.
Superior control, outstanding efficiency
Receive superior temperature control and outstanding efficiency regardless of your zone configuration.
TracKing telematics built in
Factory equipped with complimentary TracKing telematics, which helps monitor temperature and detects fuel loss.
Fuel efficiency, severe duty filtration
Diesel Direct Electric (DDE) architecture is built for maximized fuel efficiency, and 4,000-hour severe duty fuel filtration is standard.
Overview
- 52,000BTU/hrCooling at 35°F on engine power, measured with a remote evaporator
- 3zonesUp to three temperature zones, with up to four remote evaporators
- 24.0HPTK486V25L engine at 2,200 RPM; EPA <25 HP Tier IV
- 24monthsOf complimentary TracKing telematics, factory equipped
The C-600M is the cost-effective way to take advantage of the Precedent platform, for retailers and distributors outside California. Beginning with model year 2023, it is not compliant for operation in the state of California. It runs two or three zones with remote evaporators and complies with the highest possible EPA standards for engines under 25 HP (Tier IV).
Multi-temp, outside California.
What Thermo King built into the C-600M, and where it can run.
Built for fleets outside California.
Thermo King made the C-600M for retailers and distributors outside California who need a reliable multi-temp unit. From model year 2023 it is for operation outside California, and it complies with the highest possible EPA standards for engines under 25 HP (Tier IV). For fleets that haul in California, the pick is the S-610M or S-610DE.
- For operation outside California (from model year 2023)
- Complies with highest possible EPA standards (<25 HP Tier IV)
- TK486V25L engine, 24.0 HP at 2,200 RPM
Two or three zones.

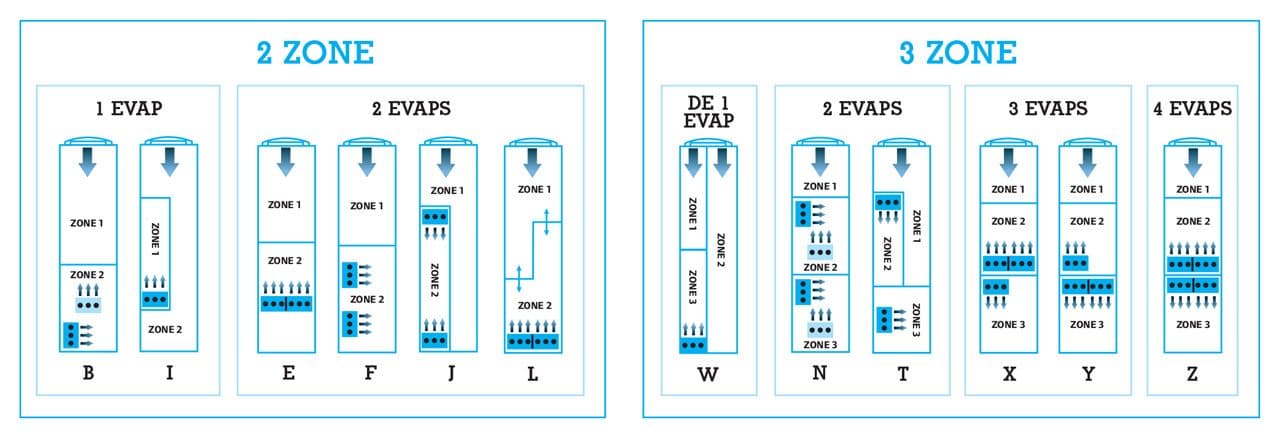

Thermo King designs its multi-temp systems to control two or three compartments, and any compartment can be set at any temperature. On the C-600M, the host unit's evaporator controls zone 1 and a ceiling-mounted remote evaporator controls zone 2; a three-zone trailer adds remote evaporators for zone 3.
- Supports 1, 2, and 3 zone operation with up to four remote evaporators
- Numerous zone configurations within the trailer
- Zone 1 runs whenever the unit is on; zones 2 and 3 can be turned on and off as needed
Walls between the zones.
Insulated bulkheads separate a multi-temp trailer into zones, each with its own setpoint. Thermo King's PrimAir insulated bulkheads enable consistent temperature zones, and a multiple-compartment trailer should have a center bulkhead with tight air seals. To haul one temperature, move the dividing walls to make one compartment; with Single Zone Control enabled, every zone runs to the same setpoint.
Connected from the factory.
Every C-600M comes from the factory with 24 months of complimentary TracKing telematics. It helps monitor temperature, offers rapid alarm detection and security alerts when the doors are opened, and detects fuel loss.
Built for the road.
- Smart Reefer SR-4 controllerWith ServiceWatch maintenance monitoring and a simple user interface with USB service diagnostics.
- OptiSet PlusCargo profiles for maintaining product integrity.
- Diesel Direct Electric (DDE)Thermo King's architecture for maximized fuel efficiency.
- Severe duty fuel filtration4000 hour severe duty fuel filtration, standard.
- Microchannel condenser coilsPaired with a 2-speed evaporator.
- Composite doorsLong-life door panels with auto-latch and auto secondary latch on front doors.
Compare the C-600M.
Side by side with another multi-temperature Precedent, with only the differences showing.
Every Precedent side by sideUnit specs
Specs for the C-600M, with their test conditions.
Refrigeration capacity
| Box temperature | Engine Power w/ETV, BTU/hr | Engine Power w/ETV, Watts | Electric Power*, BTU/hr | Electric Power*, Watts |
|---|---|---|---|---|
| 35°F | 52,000 | 15,240 | 44,000 | 12,896 |
| 0°F | 32,000 | 9,379 | 32,000 | 9,379 |
| -20°F | 20,000 | 5,862 | 20,000 | 5,862 |
System net cooling capacity with 1-S3 remote evap at 100°F ambient and high speed engine operation. Electric power: Thermo King offers several electric standby options; ask your shop about performance on the one you choose.
Heating capacity
| Engine Power w/ETV, BTU/hr | 43,000 |
|---|
System net heating capacity at 35/0°F ambient.
Airflow capacity
| Volume at 0 Pa static pressure | 3,350 ft³/min |
|---|
Engine
| Model | TK486V25L |
|---|---|
| RPM at High Speed | 2,200 |
| RPM at Low Speed | 1,450 |
| HP Rating at 2,200 RPM | 24.0 |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs |
Four cylinder, direct injection, liquid cooled.
Compressor
| Model | X430L |
|---|---|
| Displacement | 30.0 in³ |
Lightweight aluminum alloy body, heads and deep sump.
Refrigerant
| Type | R452A |
|---|---|
| Charge | ~17 lbs |
Zero Ozone Depletion Potential (ODP), internationally approved.
Weight
| System | 1,905 lbs |
|---|---|
| 50 gallon fuel tank (with bracket) | 76 lbs |
CARB/EPA compliance
| EPA | Complies with highest possible EPA standards (<25HP Tier IV) |
|---|---|
| California | Not compliant for operation in the state of California (Beginning with Model Year 2023) |
Standard features and options
- Standard featuresSmart Reefer® SR-4 controller for superior temperature control · Factory equipped with 24 months complimentary TracKing® Telematics · ServiceWatch enabled for maintenance monitoring · OptiSet® Plus cargo profiles for maintaining product integrity · Diesel Direct Electric (DDE) architecture for maximized fuel efficiency · 4000 hour severe duty fuel filtration standard · Microchannel condenser coils · 2-speed evaporator · Simple user interface with USB service diagnostics · 50-gallon aluminum undermount fuel tank w/visual fuel level gauge
- OptionsTemperature data logger for enhanced load protection · Customizable appearance (LED lighting kit, Chrome package) · Arctic package · Severe duty package · ThermoLite® solar panels · Alternator, 65amp, 12Vdc · Battery charger · Supplemental power kit · SmartPower™ prep package · SmartPower™ electric standby (Standard and High Output (HO) options)
Resources
Spec sheets, brochures and manuals for the C-600M. Each opens on thermoking.com.
Every spec sheet and manual- Spec sheetPrecedent C-600M specification sheetPDF · 208 KB · TK 56191-2-PLOpen Precedent C-600M specification sheet (PDF, opens in a new tab)
- Operator's manualPrecedent multi-temp operator's manualPDF · 4 MB · TK 56171-2-OPOpen Precedent multi-temp operator's manual (PDF, opens in a new tab)
- Installation manualPrecedent multi-temp installation manual (host unit)PDF · 44 MB · TK 55745-2-IMOpen Precedent multi-temp installation manual (host unit) (PDF, opens in a new tab)
- BrochureTrailer portfolio brochurePDF · 3 MB · TK 56862-3-PLOpen Trailer portfolio brochure (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the Precedent C-600M.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the C-600M. Anything else, call your shop.
Can I run the C-600M in California?
No. Beginning with model year 2023, it is not compliant for operation in the state of California. For California, the pick for multi-temp fleets is the S-610M or S-610DE.
How many temperature zones can it run?
Two or three. The host unit's evaporator controls zone 1 and a remote evaporator controls zone 2; a three-zone setup adds remote evaporators. Thermo King's multi-temp platform supports up to four remote evaporators.
What engine does it use?
A four-cylinder, direct-injection, liquid-cooled TK486V25L, rated 24.0 HP at 2,200 RPM. The C-600M complies with the highest possible EPA standards for engines under 25 HP (Tier IV).
Can it run on electric standby?
As an option. SmartPower electric standby comes in standard and high output (HO) versions, with 230-volt and 460-volt three-phase motors. On electric power the C-600M is rated at 44,000 BTU/hr at 35°F; ask your shop for the performance of a specific option.
What refrigerant does it use?
R452A, with a charge of about 17 lbs. It reduces the carbon footprint of refrigerants used by fleets by nearly 50%.
Is telematics included?
Yes. Every C-600M is factory equipped with 24 months of complimentary TracKing telematics.
How often does it need service?
The maintenance interval is 3,000 hours, and 4,000-hour severe duty fuel filtration is standard. The 1,500-, 3,000-, and 4,500-hour/annual inspections should be performed by an authorized Thermo King dealer. TKSE is one, with factory-trained technicians at seven shops in Florida, Georgia, and Mississippi.
Can a multi-temp trailer haul a single-temperature load?
Yes. Reposition the dividing walls to make one large compartment; with Single Zone Control enabled, all zones run to the same setpoint.
