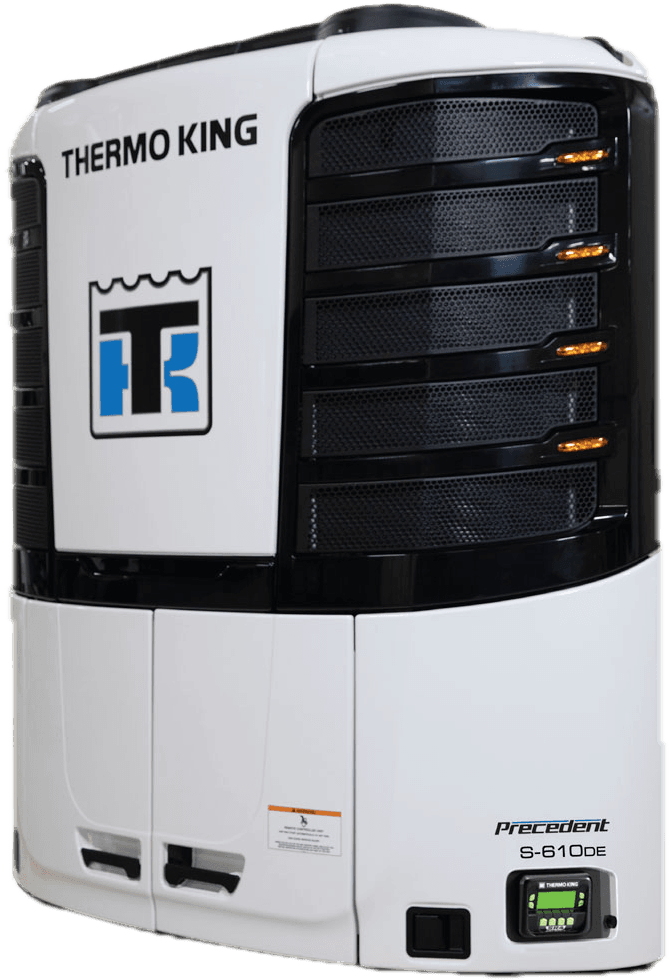

Thermo King Precedent S-610DE
The Precedent S-610DE is a multi-temp reefer that allows for two separate temperature zones in one trailer without the need for remote evaporators.
Why the S-610DE
Two zones, no remote evaporators
Operate two temperature zones within your trailer without extra evaporators, with one evaporator for each zone in the host unit.
Dual lane loading
Two separate longitudinal temperature zones in one trailer make multiple-zone loading and unloading seamless.
No DPF, ever
CARB Evergreen certification since 2013 means no diesel particulate filter (DPF) will ever be needed.
Superior temperature control
The Smart Reefer SR-4 controller gives superior temperature control, and OptiSet Plus cargo profiles help maintain product integrity.
TracKing telematics built in
Factory equipped with complimentary TracKing telematics, which helps monitor temperature and detects fuel loss.
Room for a third zone

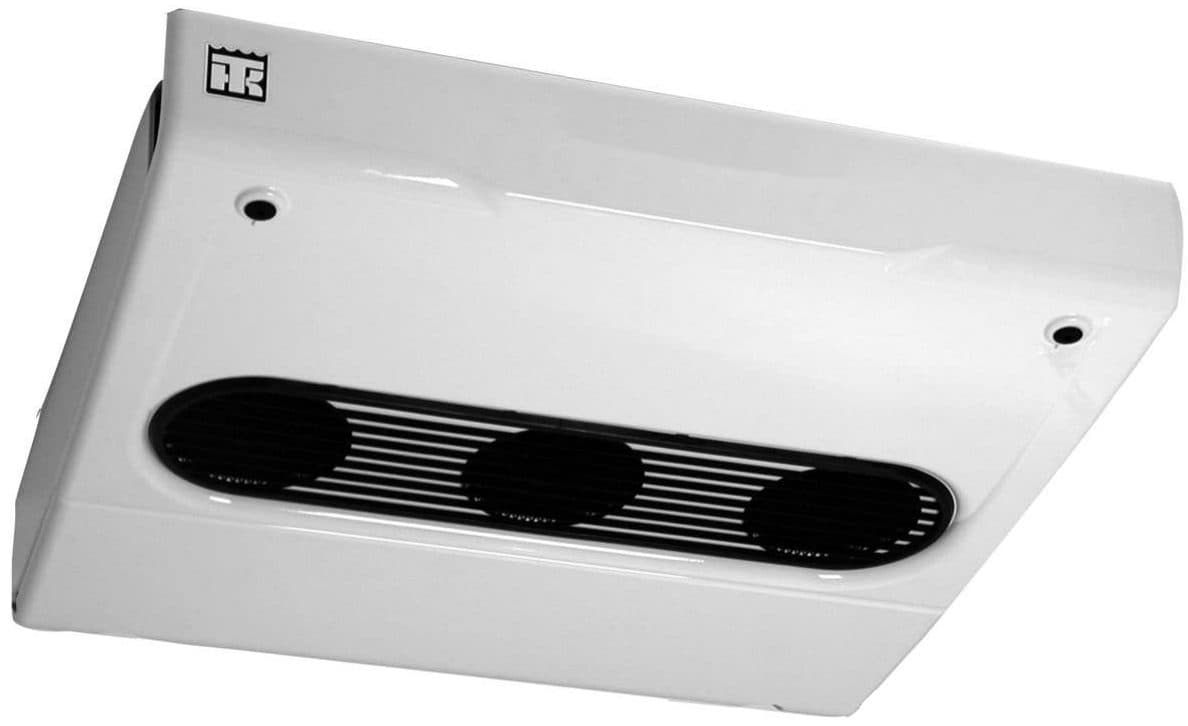

The S-610DE has options for additional zones, and a DE-3 unit adds a remote evaporator to control a third compartment.
Overview
- 2zonesTwo temperature zones, without remote evaporators
- 58,000BTU/hrCooling at 35°F on engine power, both zones combined
- 50statesS-Series emissions compliance since 2013
- 24monthsOf complimentary TracKing telematics, factory equipped
Thermo King's S-610DE runs two temperature zones in one trailer without remote evaporators; the zones run lengthwise, side by side, for dual lane loading. It is CARB Evergreen certified, so it needs no DPF, and it uses R452A refrigerant.
Two lanes, two temperatures.
How the S-610DE splits a trailer into two zones, and what comes standard.
Two zones, no remote evaporators.
The S-610DE's host unit has two evaporators: one controls zone 1 and the other controls zone 2. The zones align vertically in the trailer: two separate longitudinal zones, each running the length of the trailer. It's the pick for California fleets that prefer dual lane loading.
- Two temperature zones within the trailer without extra evaporators
- One evaporator for each zone, both in the host unit
- Installed with a center wall divider between the zones
Room for a third zone.
The S-610DE has options for additional zones. A DE-3 unit adds a remote evaporator to control a third compartment: one lane holds zone 2, and the other splits into zones 1 and 3.
No DPF, ever.
The S-610DE runs Thermo King's S-Series engine, which means CARB ULETRU compliance with no DPF. It has held CARB Evergreen certification since 2013, complies with the highest possible EPA standards for engines over 25 HP (Tier IV), and has a fix-on-fail exhaust gas recirculation system.
- No need for a diesel particulate filter (DPF)
- CARB Evergreen certification since 2013
- EPA >25 HP Tier IV
Connected from the factory.
Every S-610DE comes from the factory with 24 months of complimentary TracKing telematics. It helps monitor temperature, offers rapid alarm detection and security alerts when the doors are opened, and detects fuel loss.
Built for the road.
- Smart Reefer SR-4 controllerWith ServiceWatch maintenance monitoring and a simple user interface with USB service diagnostics.
- OptiSet PlusCargo profiles for maintaining product integrity.
- Diesel Direct Electric (DDE)Thermo King's architecture for maximized fuel efficiency.
- Common rail fuel injectionWith real-time monitoring, 2-stage fuel filtration, and a fix-on-fail exhaust gas recirculation system.
- Microchannel condenser coilsPaired with a 2-speed evaporator.
- Composite doorsLong-life door panels with auto-latch and auto secondary latch on front doors.
Compare the S-610DE.
Side by side with another multi-temperature Precedent, with only the differences showing.
Every Precedent side by sideUnit specs
Specs for the S-610DE, with their test conditions.
Refrigeration capacity
| Box temperature | Engine Power w/ETV, BTU/hr | Engine Power w/ETV, Watts | Electric Power*, BTU/hr | Electric Power*, Watts |
|---|---|---|---|---|
| 35°F | 58,000 | 16,999 | 44,000 | 12,896 |
| 0°F | 30,000 | 8,792 | 28,000 | 8,206 |
| -20°F | 18,000 | 5,275 | 17,000 | 4,982 |
System net cooling capacity at 100°F ambient and high speed engine operation - combined 2-zone system. Electric power: Thermo King offers several electric standby options; ask your shop about performance on the one you choose.
Heating capacity
| Engine Power w/ETV, BTU/hr | 39,000 |
|---|
System net heating capacity at 35/0°F ambient.
Airflow capacity
| Volume at 0 Pa static pressure | Combined zone 1 + zone 2 = 2,850 ft³/min |
|---|
Engine
| Model | TK488CR |
|---|---|
| RPM at High Speed | 2,050 |
| RPM at Low Speed | 1,250 |
| HP Rating at 2,050 RPM | 33 |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs/4,000 hrs |
Four cylinder, direct injection, liquid cooled.
Compressor
| Model | X430L |
|---|---|
| Displacement | 30.0 in³ |
Lightweight aluminum alloy body, heads and deep sump.
Refrigerant
| Type | R452A |
|---|---|
| Charge | ~17 lbs |
Zero Ozone Depletion Potential (ODP), internationally approved.
Weight
| System | 1,935 lbs |
|---|---|
| 50 gallon fuel tank (with bracket) | 76 lbs |
CARB/EPA compliance
| California Air Resources Board (CARB) | Evergreen Certification since 2013 |
|---|---|
| EPA | Complies with highest possible EPA standards (>25HP Tier IV) |
Standard features and options
- Standard featuresSmart Reefer® SR-4 controller for superior temperature control · Factory equipped with 24 months complimentary TracKing® Telematics · ServiceWatch enabled for maintenance monitoring · OptiSet® Plus cargo profiles for maintaining product integrity · Diesel Direct Electric (DDE) architecture for maximized fuel efficiency · Common rail fuel injection with real-time monitoring · 2-stage fuel filtration system · Fix-on-fail exhaust gas recirculation system · Microchannel condenser coils · 2-speed evaporator · Simple user interface with USB service diagnostics · 50-gallon aluminum undermount fuel tank w/visual fuel level gauge
- OptionsTemperature data logger for enhanced load protection · Customizable appearance (LED lighting kit, Chrome package) · Arctic package · Severe duty package · ThermoLite® solar panels · Alternator, 65amp, 12Vdc · Battery charger · Supplemental power kit · SmartPower™ prep package · SmartPower™ electric standby (Standard and High Output (HO) options)
Resources
Spec sheets, brochures and manuals for the S-610DE. Each opens on thermoking.com.
Every spec sheet and manual- Spec sheetPrecedent S-610DE specification sheetPDF · 199 KB · TK 56346-2-PLOpen Precedent S-610DE specification sheet (PDF, opens in a new tab)
- Operator's manualPrecedent multi-temp operator's manualPDF · 4 MB · TK 56171-2-OPOpen Precedent multi-temp operator's manual (PDF, opens in a new tab)
- Installation manualPrecedent multi-temp installation manual (host unit)PDF · 44 MB · TK 55745-2-IMOpen Precedent multi-temp installation manual (host unit) (PDF, opens in a new tab)
- BrochureTrailer portfolio brochurePDF · 3 MB · TK 56862-3-PLOpen Trailer portfolio brochure (PDF, opens in a new tab)
Keep it running.
The service, parts and plans behind every unit TKSE sells.
Service Factory-trained technicians at seven shops, and mobile service trucks that come to the unit.
Parts Every TKSE shop has a parts department with genuine Thermo King parts.
Guaranteed Maintenance Thermo King's fixed-cost agreement for planned and unscheduled maintenance and breakdown repairs. Your shop sets it up.
Get a quote on the Precedent S-610DE.
Tell us what you need and pick your shop. Or call and talk it through.
- Seven shops in Florida, Georgia and Mississippi.
- Factory-trained technicians, with ongoing training.
- A parts department at every shop.
- Service trucks that come to the unit.
Questions
About the S-610DE. Anything else, call your shop.
How does the S-610DE make two zones without remote evaporators?
Its host unit has two evaporators, one for each zone. The zones run lengthwise in the trailer as two lanes, for dual lane loading.
Can it run a third zone?
Yes, as an option: a DE-3 unit adds a remote evaporator that controls a third compartment.
S-610DE or S-610M?
Both are CARB Evergreen certified. The S-610M builds its extra zones with remote evaporators, while the S-610DE gets two zones from its host unit. For California fleets, the S-610DE is the pick if you prefer dual lane loading, and the S-610M if you don't.
Can I run it in California?
Yes. The S-610DE has held CARB Evergreen certification since 2013, and its S-Series engine means CARB ULETRU compliance with no DPF.
Can it run on electric standby?
As an option. SmartPower electric standby comes in standard and high output (HO) versions, with 230-volt and 460-volt three-phase motors. On electric power the S-610DE is rated at 44,000 BTU/hr at 35°F, both zones combined; ask your shop for the performance of a specific option.
What refrigerant does it use?
R452A, with a charge of about 17 lbs. It reduces the carbon footprint of refrigerants used by fleets by nearly 50%.
Is telematics included?
Yes. Every S-610DE is factory equipped with 24 months of complimentary TracKing telematics.
How often does it need service?
The maintenance interval is 3,000 or 4,000 hours, and the 1,500-, 3,000-, and 4,500-hour/annual inspections should be performed by an authorized Thermo King dealer. TKSE is one, with factory-trained technicians at seven shops in Florida, Georgia, and Mississippi.
