What TKSE does.
- TKSE carries Waltco liftgates.
- Liftgate installation and service are on TKSE's service menu.
- TKSE offers parts and service for Waltco gates and every other make.
At all seven TKSE shops.
Waltco liftgates
Flipaway, rail, cantilever and slider liftgates, from 1,000 to 6,600 lbs.
Waltco series.
Waltco liftgates are designed for both urban city use, heavy duty long haul, and specialty applications. Waltco series by type, with the vehicle classes for each.
| Series | Capacity | Vehicle |
|---|---|---|
| Flip away | ||
| EMEMW, EMW/AP | 2,500 or 3,300 lbs | Light, medium |
| HLF | 2,500–5,000 lbs | Heavy |
| Rail-typeThe MDL is for a pick-up truck, service body, stake body, truck body or trailer. The WDV runs on column style rails. | ||
| DD | 1,600 or 2,000 lbs | Medium |
| MDL | 1,250–3,000 lbs | Light, medium |
| MDL/HP | 1,600–3,000 lbs | Light, medium |
| MDV | 3,000 or 4,000 lbs | None listed |
| WDV | 3,500–6,600 lbs | Heavy |
| Bottle gasThe MDLBG is a rail-type liftgate for bottled gas, and the MDVBG a bottle gas column liftgate. | ||
| MDLBG | 1,600 or 2,000 lbs | Light, medium |
| MDVBG | 3,500 or 4,500 lbs | None listed |

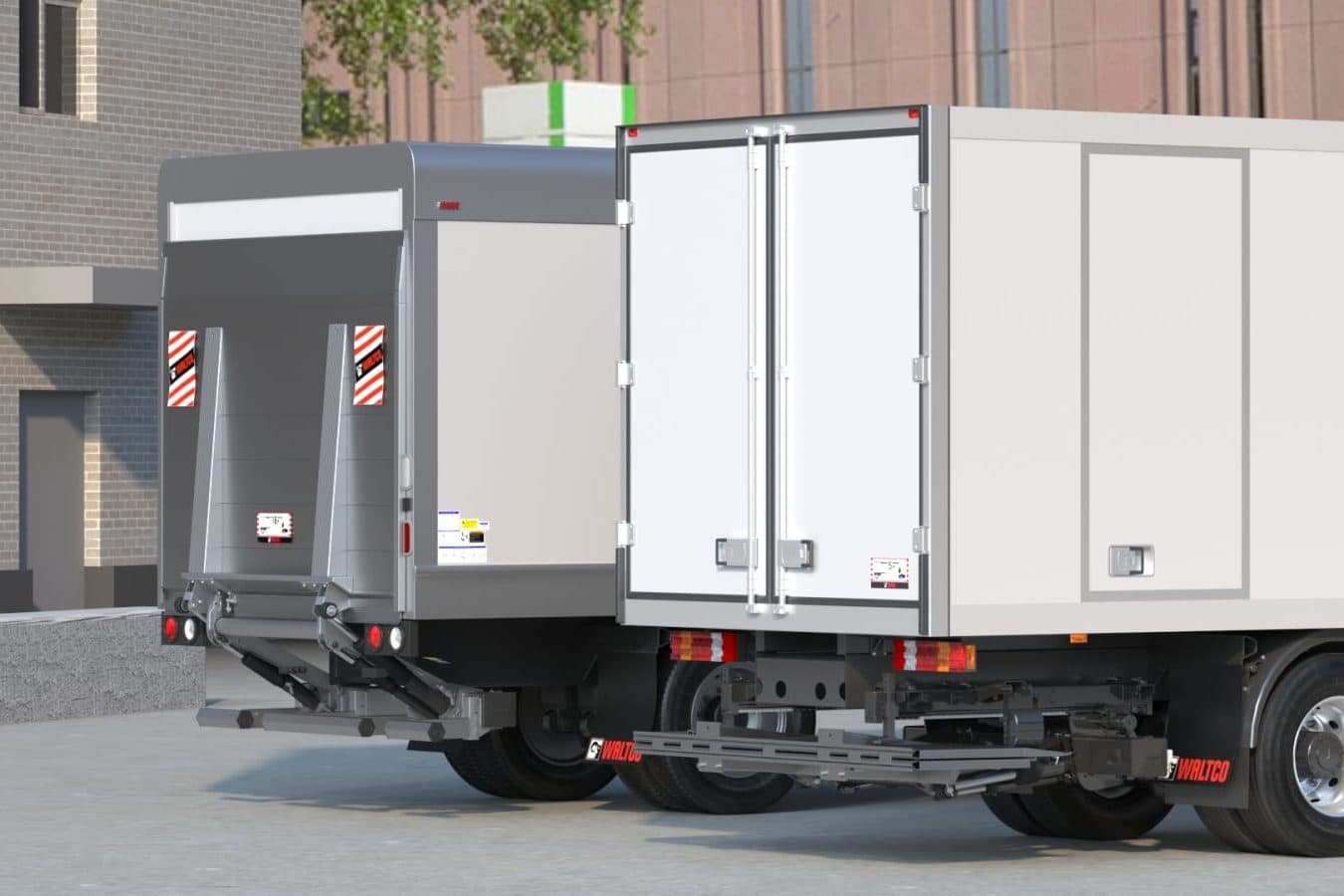

| CantileverThe platform can replace the vehicle rear door of the body. | ||
| HDC 33/44 | 3,300 or 4,400 lbs | Medium, heavy |
| Slide-awayStores completely under the body. | ||
| ZS 33/44 MK2 | 3,300 or 4,400 lbs | Heavy |
| Full closureWaltco builds the FM into the truck body as the rear door. | ||
| FM | 1,000 or 1,600 lbs | Light, medium |
Vehicle: the light, medium or heavy duty classes each series is marked for. A dash means none is listed.
From Waltco's series pages.
Questions
About Waltco liftgates. Anything else, call your shop.
Does TKSE sell Waltco liftgates?
Yes. TKSE carries Waltco liftgates, and liftgate installation and service are on its service menu.
Which Waltco liftgates can replace the rear door?
The HDC 33/44 cantilever: its platform can replace the vehicle's rear door, with a full door seal kit as an option. The FM Series is built into the truck body as the rear door.
Does Waltco make a liftgate for gas bottles?
Yes: the MDLBG, a rail-type gate for bottled gas at 1,600 or 2,000 lbs, and the MDVBG, a bottle gas column liftgate at 3,500 or 4,500 lbs.
Which type do I need?
Start with the vehicle and the heaviest load you'll lift. The table shows whether each series is for light, medium or heavy duty vehicles. Then call your shop with your bed height.
Other liftgate brands.
All liftgates
Need a Waltco liftgate? Call TKSE.
Have the series, the heaviest load and your bed height ready.
