Side, tuckunder and column liftgates for trucks and trailers, from 1,000 to 10,000 lbs.
At all seven TKSE shops.
Leyman has made side, tuckunder and extreme duty column gates since 1940. Models from Leyman's 2026 catalog, by type.
| Model | Capacity | Mounts on |
|---|---|---|
| Extreme duty column gate | ||
| FREEDOM FXDFXD 45, 55, 68 | 4,500–6,800 lbs | Truck or trailer |
| Tuckunder rear gates | ||
| HERO LHLP2500G, 3500G, 4500G, 5500G | 2,500–5,500 lbs | Truck or trailer |
| LIBERTY SLP3500W, and 3500WLB low-boy | 3,500 lbs | Truck or trailer |
| Side gates | ||

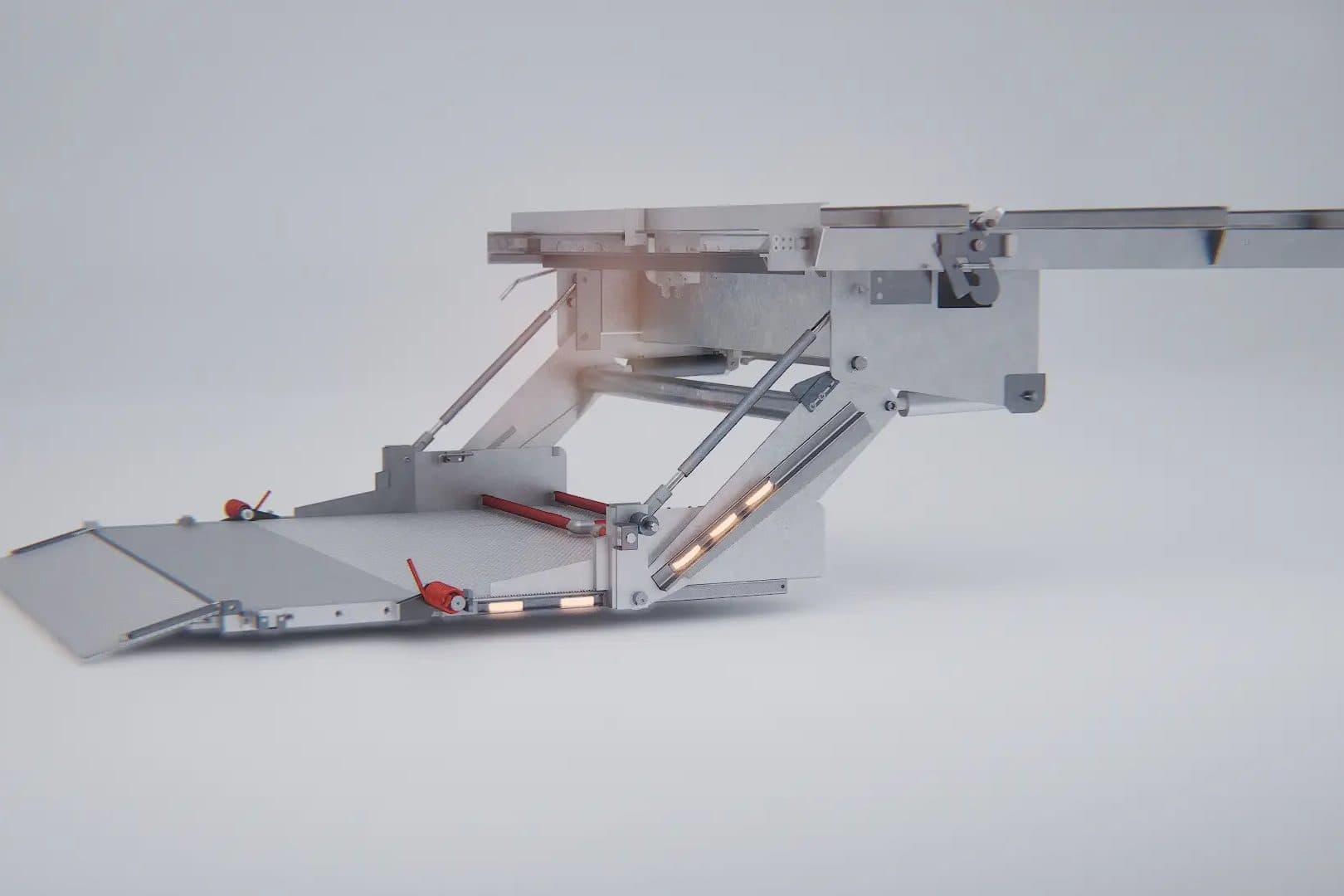

| PREMIER LPSLPS 4500 | 4,500 lbs | Trailer |
| LEGEND TLSTLS 3510, 4510 | 3,500 or 4,500 lbs | Trailer |
| TRIUMPH LTSLTS 2000 | 2,000 lbs | Truck |
| SUPERIOR TSGTSG 3000 | 3,000 lbs | Truck |
| Trailer rear gateA slider. The PATRIOT LPR fits only 102-inch-wide trailers. | ||
| PATRIOT LPRLPR 4500 | 4,500 lbs | Trailer, 102 in. wide |
| Patient lift gateFor mobile MRI and CAT scan trailers. | ||
| GUARDIAN PLGPLG 1000, 1010 | 1,000 lbs | Mobile medical trailer |
| Internal elevator | ||
| VALOR Ley-VadorLEY 6000, LEY 10000 | 6,000 or 10,000 lbs | Trailer |
The patient lift gate mounts in a mobile medical trailer's belly box.
From Leyman's Lift Gate Product Catalog 2026 and Gate Order Checklist.
About Leyman liftgates. Anything else, call your shop.
Yes: TKSE does installations, warranty work and service on all models of Leyman liftgates at all seven shops, and its parts department carries Leyman items and accessories.
No. The PATRIOT LPR fits only 102-inch-wide trailers. On Leyman's order checklist, the gate's D dimension is critical: it takes up a minimum of 78 inches.
It depends on the body: truck or trailer, reefer or non-reefer, 96 or 102 inch width, and the body measurements each model needs. Call your shop with the numbers.
TKSE installs, services and does warranty work on Leyman liftgates.
